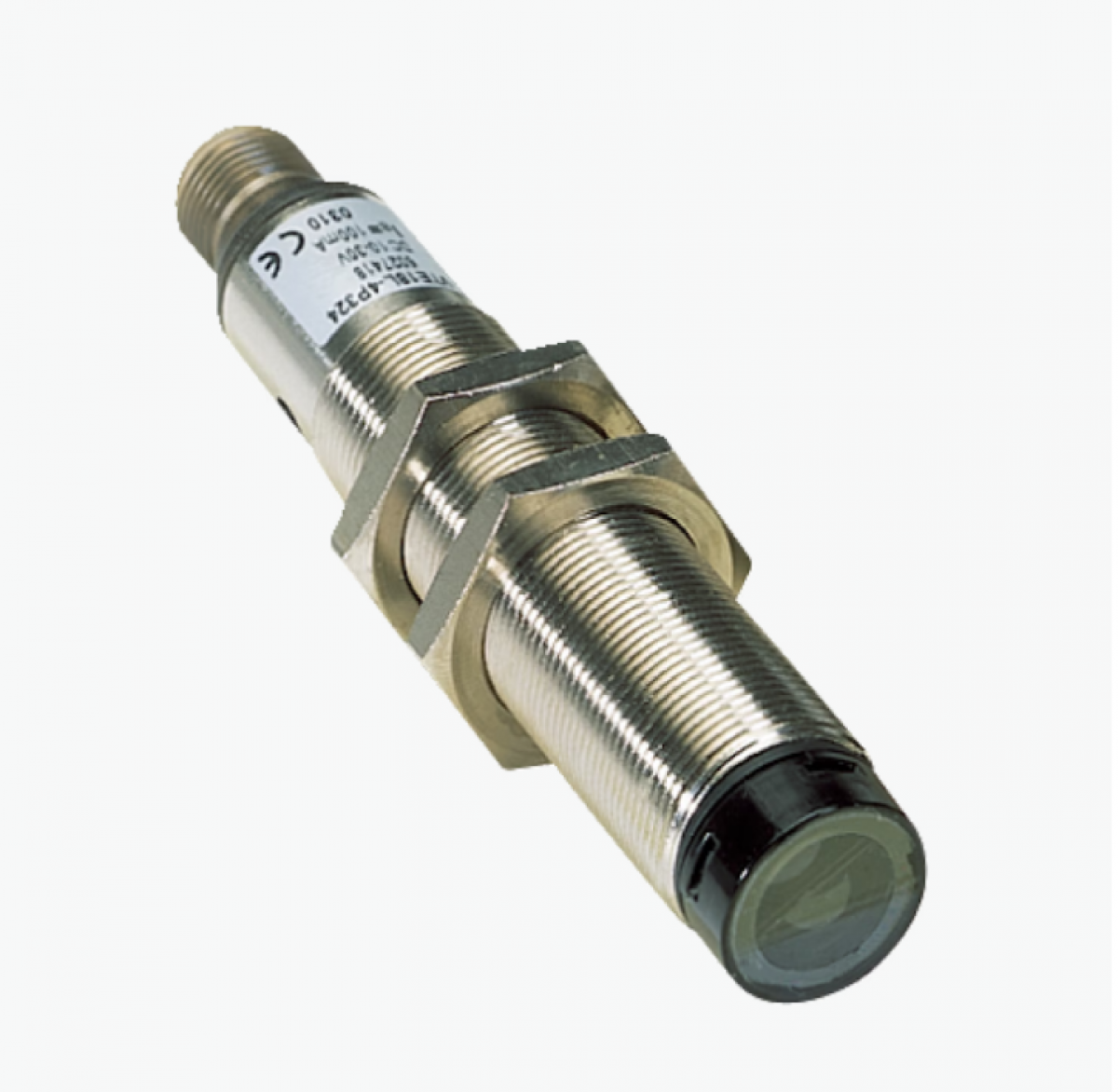

Cảm biến quang điện Sick VSE18L-4P324
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
18 mm x 18 mm x 97.7 mm
Housing design (light emission)
Cylindrical
Housing length
97.7 mm
Thread diameter (housing)
M18 x 1
Optical axis
Axial
Sensing range max.
0 m … 60 m
Sensing range
0 m … 50 m
Focus
0.06°
Type of light
Visible red light
Light source
Laser 1)
Light spot size (distance)
Ø 40 mm (50 m)
Angle of dispersion
0.06°
Wave length
650 nm
Laser class
1 (IEC 60825-1)
Laser power output
0.4 mW
Adjustment
Potentiometer, 270° (Sensitivity)
Special applications
Detecting small objects
1) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection type
Connection diagram Cd-219
Characteristic curve
Light spot size VSE18L
Sensing range diagram VSE18L
Dimensional drawing Axial
