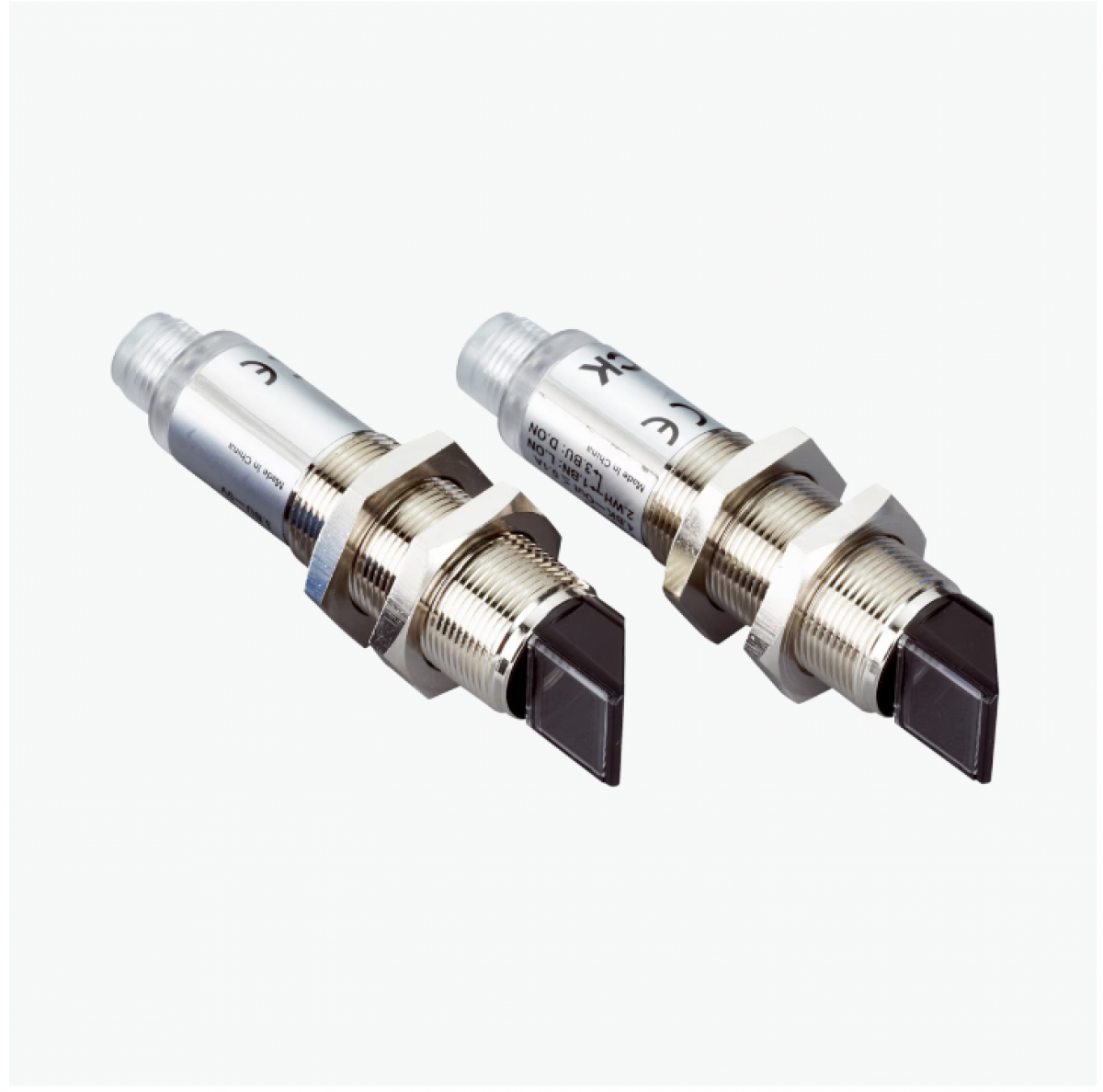

Cảm biến quang điện Sick VSE180-2P41134
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
18 mm x 18 mm x 76.5 mm
Housing design (light emission)
Cylindrical
Housing length
76.5 mm
Optical axis
Radial
Sensing range max.
0 m … 25 m
Sensing range
0 m … 19 m
Focus
Approx. 5°
Type of light
Visible red light
Light source
LED 1)
Light spot size (distance)
Ø 1,100 mm (20 m)
Angle of dispersion
Approx. 5°
Wave length
645 nm
Adjustment
Potentiometer, 270° (Sensitivity) 2)
1) Average service life: 100,000 h at TU = +25 °C.
2) Receiver.
Technical drawings
Adjustments
Connection type
Connection diagram Cd-058
Characteristic curve VSE180-2, 25 m, radial
Light spot size VSE180-2, 25 m, radial
Sensing range diagram VSE180-2, 25 m, radial
Dimensional drawing VSE180-2, metal, radial
