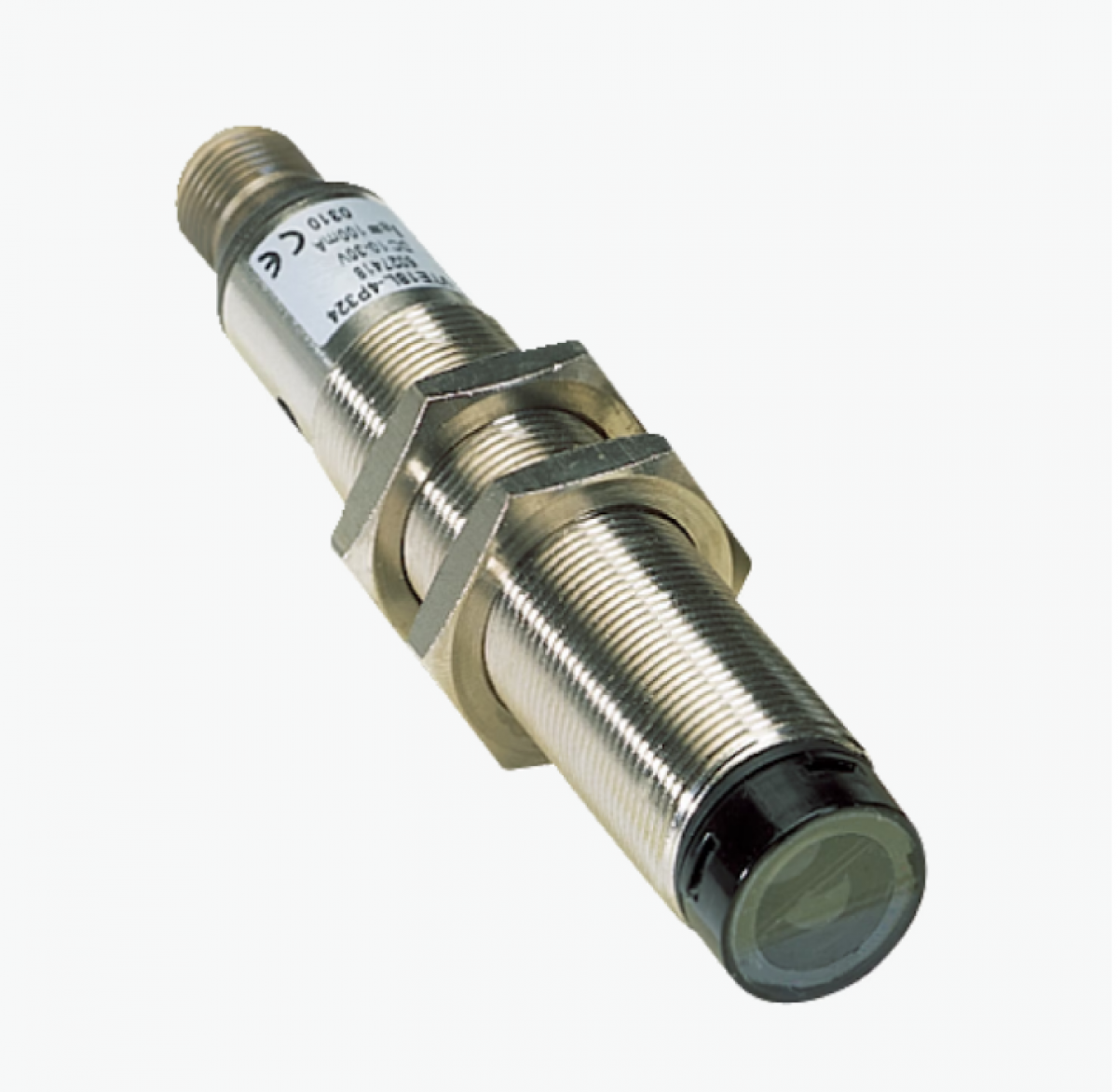

Cảm biến quang điện Sick VL18L-4P324
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
With minimum distance to reflector (dual lens system)
Dimensions (W x H x D)
18 mm x 18 mm x 97.7 mm
Housing design (light emission)
Cylindrical
Housing length
97.7 mm
Thread diameter (housing)
M18 x 1
Optical axis
Axial
Sensing range max.
0.1 m … 35 m 1)
Sensing range
0.1 m … 30 m 1)
Focus
0.04°
Type of light
Visible red light
Light source
Laser 2)
Light spot size (distance)
Ø 9 mm (35 m)
Angle of dispersion
0.04°
Wave length
650 nm
Laser class
1 (IEC 60825-1)
Laser power output
0.4 mW
Adjustment
Cable, Single teach-in button (Sensitivity, Sensitivity) 3) 4)
Special applications
Detecting small objects
1) Reflector P250F.
2) Average service life: 100,000 h at TU = +25 °C.
3) Electronically via control input C (0 V).
4) Manual, via teach-in button.
Technical drawings
Connection type
Connection diagram Cd-099
Characteristic curve
Light spot size VL18L
Sensing range diagram VL18L
Dimensional drawing Axial
