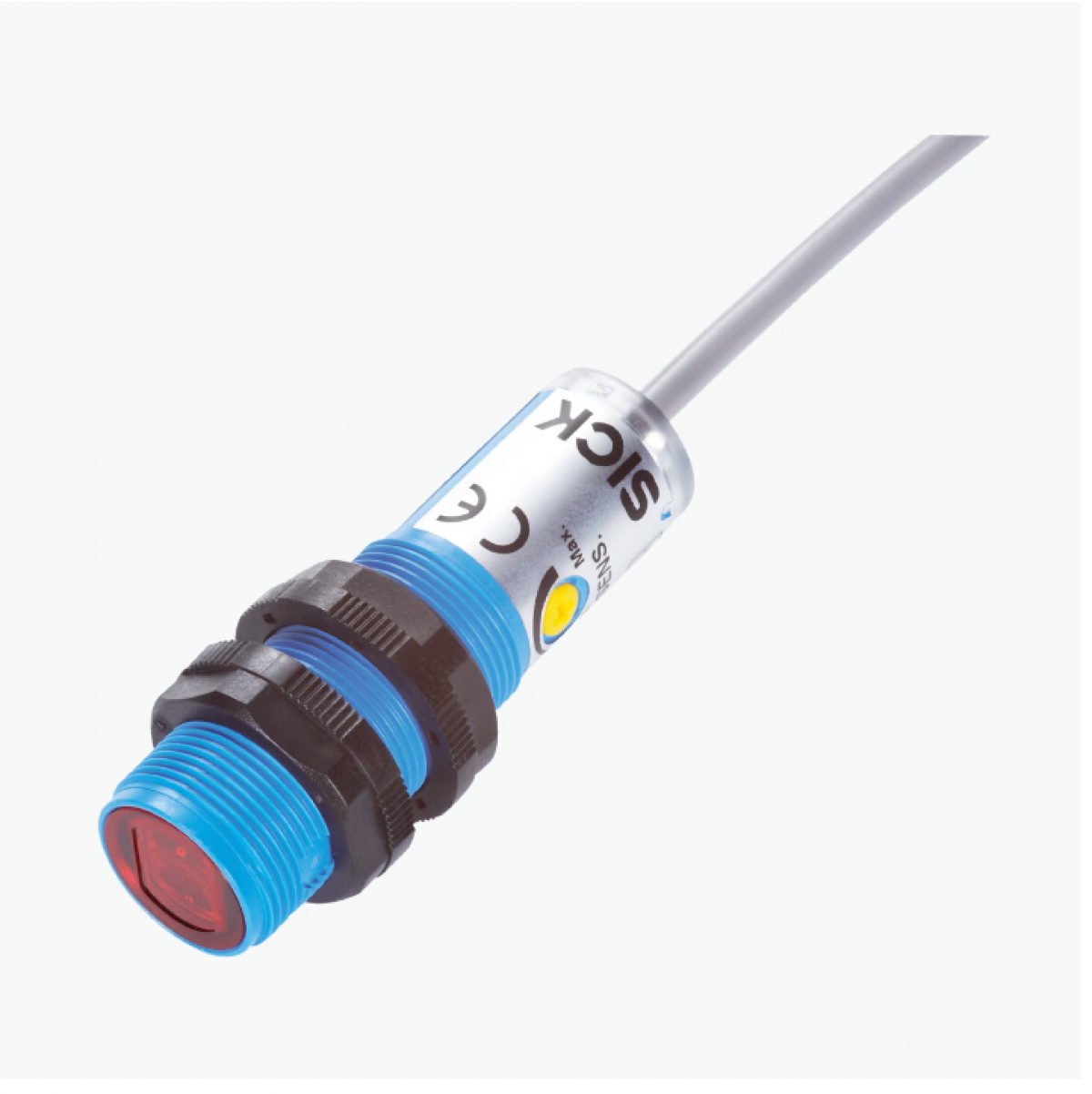

Cảm biến quang điện Sick VL180-2P41136
unctional principle
Photoelectric retro-reflective sensor
Functional principle detail
With minimum distance to reflector (dual lens system)
Dimensions (W x H x D)
18 mm x 18 mm x 62.9 mm
Housing design (light emission)
Cylindrical
Housing length
62.9 mm
Thread diameter (housing)
M18 x 1
Optical axis
Axial
Sensing range max.
0.05 m … 7 m 1)
Sensing range
0.05 m … 6 m 1)
Focus
Approx. 4.5°
Type of light
Visible red light
Light source
LED 2)
Light spot size (distance)
Ø 400 mm (6 m)
Angle of dispersion
Approx. 4.5°
Wave length
645 nm
Adjustment
Potentiometer, 270° (Sensitivity)
1) Reflector PL80A.
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Adjustments
Connection type
Connection diagram Cd-089
Characteristic curve VL180-2, 7 m, axial
Light spot size VL180-2
Sensing range diagram VL180-2, 7 m, axial
Dimensional drawing VL180-2, plastic, axial
