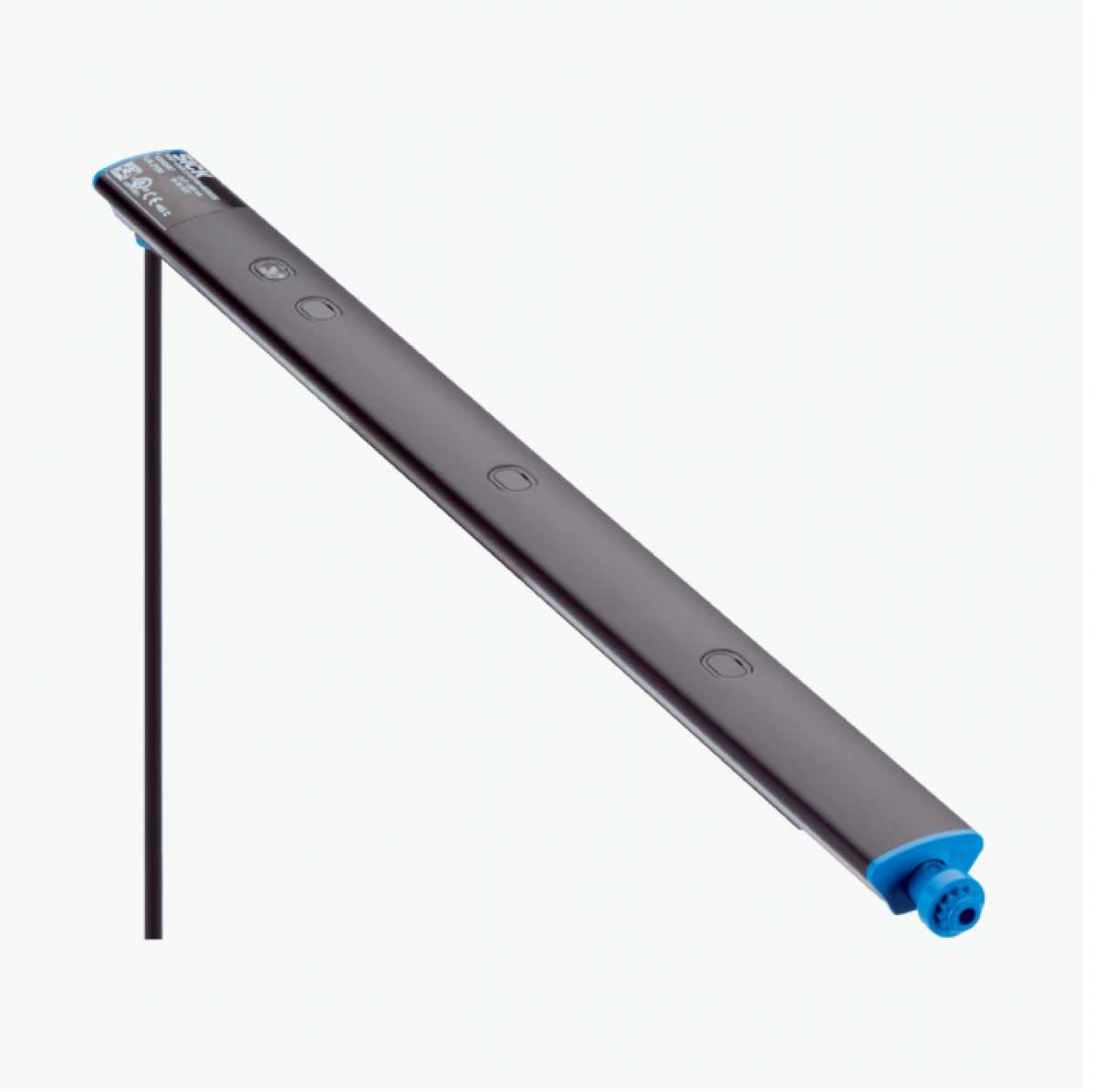

Cảm biến quang điện Sick RSB1-0750D160140FZ0BS06ZZZ
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Sensing range
Sensing range min.
2 mm
Sensing range max.
300 mm
Reference object
Object with 90% remission factor (complies with standard white according to DIN 5033)
Recommended sensing range for the best performance
2 mm … 45 mm
Emitted beam
Light source
LED
Type of light
Infrared light
Shape of light spot
Point-shaped
Light spot size (distance)
27 mm x 29 mm (45 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)
< +/- 4° (at Ta = +23 °C)
Key LED figures
LED risk group marking
Free group
Wave length
850 nm
Average service life
100,000 h at Ta = +25 °C
Number of beams
4
Beam separation
160 mm
Distance from 1st beam to leading edge of housing (including end cap)
140 mm
Smallest detectable object (MDO) typ.
160 mm (Dependent on distance between beams)
Adjustment
None
–
Indication
LED green
Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow
Status of received light beam
Static on: object present
Static off: object not present
Special features
Connection type with external diameter: 7.85 mm +0.1 mm / –0.2 mm and min. IP54
Special applications
Detecting flat objects, Detecting perforated objects, Detecting objects with position tolerances, Detecting uneven, shiny objects
Technical drawings
Dimensional drawing
display and adjustment elements
Installation note
Characteristic curve
Light spot size
Light spot size
