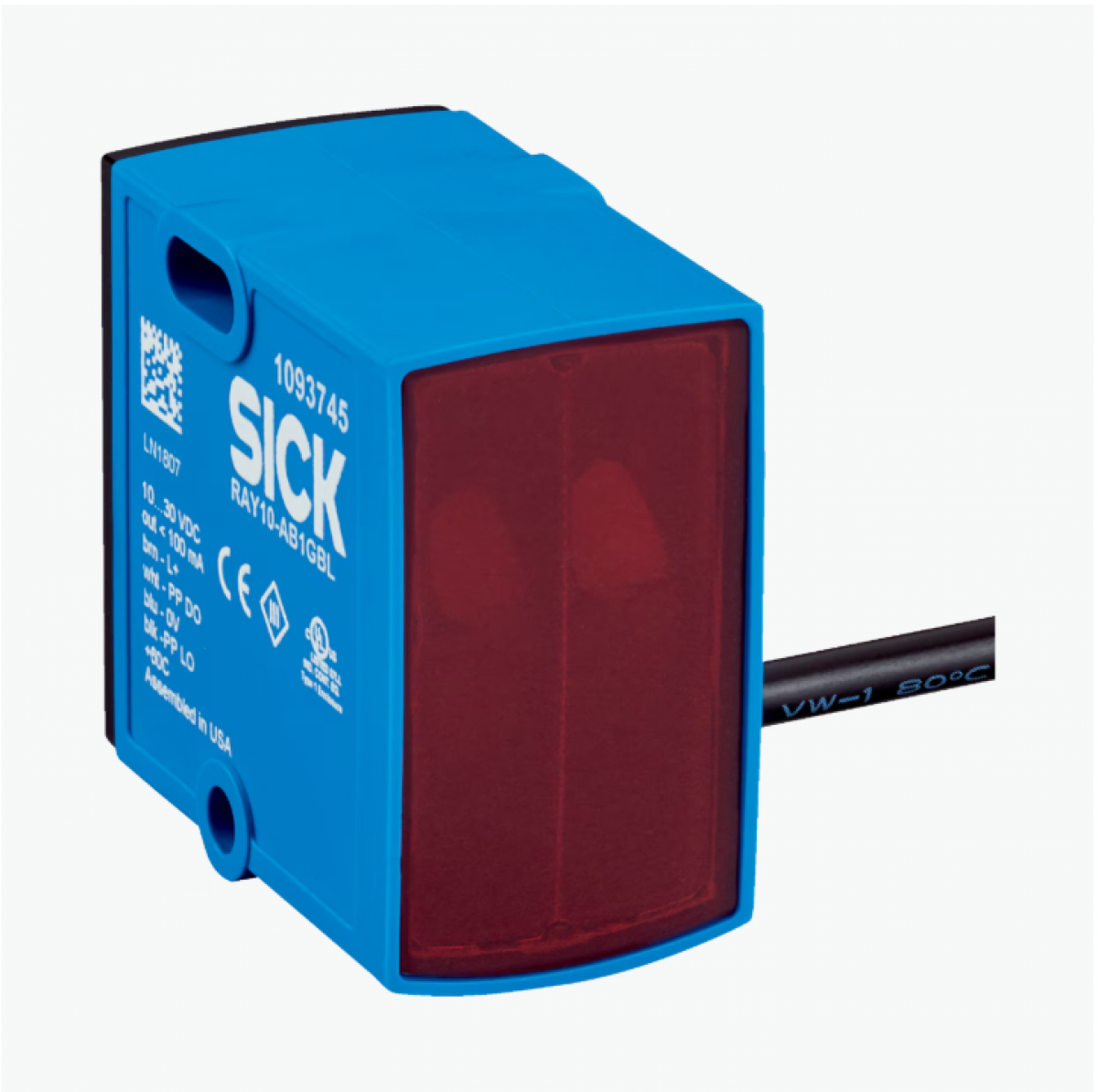

Cảm biến quang điện Sick RAY10-KZ3EBLP06
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
With minimum distance to reflector (dual lens system), Reflex Array
Dimensions (W x H x D)
21.5 mm x 36 mm x 37.7 mm
Housing design (light emission)
Rectangular
Minimum object size
5 mm, position-independent detection within the light array
Detection height
25 mm
Sensing range max.
0 m … 1.5 m 1)
Distance of the sensor to reflector
0.3 m … 1.5 m 1)
Type of light
Visible red light
Light source
PinPoint LED 2)
Light spot size (distance)
37 mm x 12 mm (1 m)
Wave length
635 nm
Adjustment
Potentiometer
Special applications
Detecting transparent objects, Detecting perforated objects, Detecting uneven, shiny objects, Detecting objects with position tolerances, Detecting flat objects
1) Reflector P250F.
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection diagram Cd-254
Light spot size
Dimensional drawing
