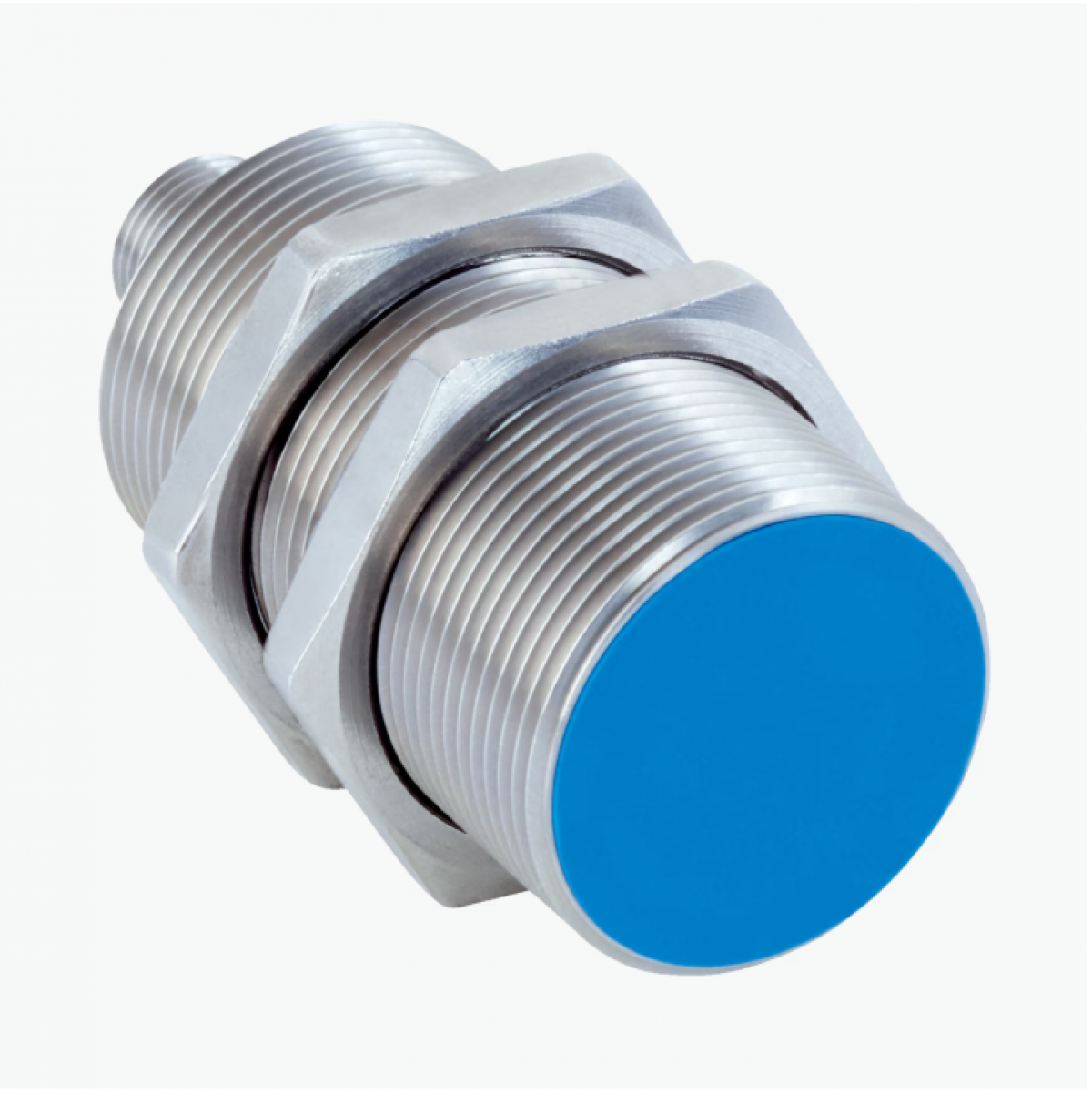

Cảm biến quang điện Sick IMG30-15BNOZC0S
Housing
Metric
Housing
Standard design
Thread size
M30 x 1.5
Diameter
Ø 30 mm
Sensing range Sn
15 mm
Safe sensing range Sa
12.15 mm
Installation type
Flush
Switching frequency
500 Hz
Connection type
Male connector M12, 4-pin
Switching output
NPN
Output function
NC
Electrical wiring
DC 3-wire
Enclosure rating
IP67 1)
IP68 1)
IP69K 2)
Special features
Resistant against coolant lubricants, Temperature resistance
Special applications
Zones with coolants and lubricants, Mobile machines, Difficult application conditions
Items supplied
Mounting nut, brass, nickel-plated (2x)
1) According to EN 60529.
2) According to ISO 20653:2013-03.
Technical drawings
Installation note Flush installation
Connection diagram Cd-008
Response diagram
Functional principle
Dimensional drawing IMG30, standard variant, male connector, flush
