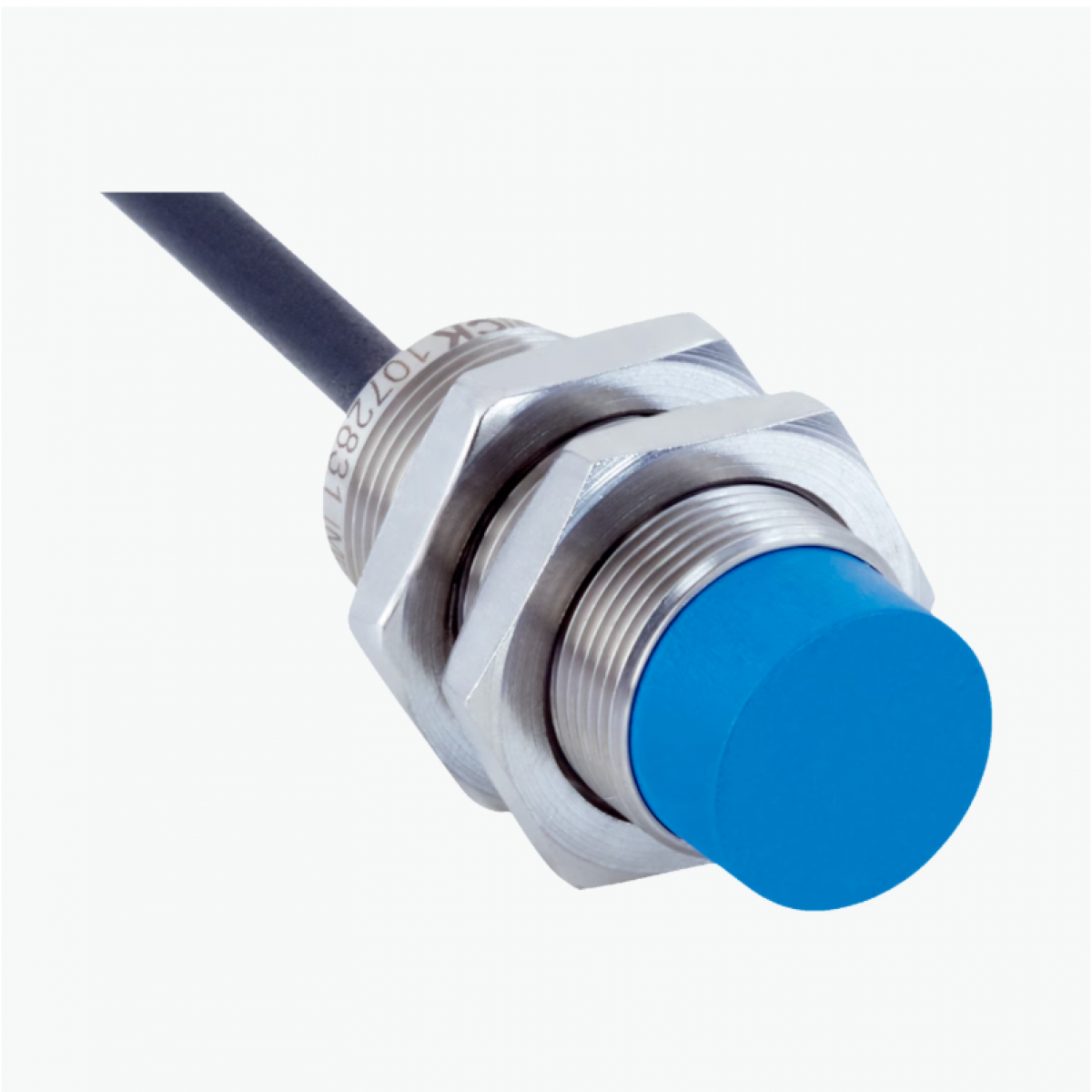

Cảm biến quang điện Sick IMG18-12NNOZU2K
Housing
Metric
Housing
Short-body
Thread size
M18 x 1
Diameter
Ø 18 mm
Sensing range Sn
12 mm
Safe sensing range Sa
9.72 mm
Installation type
Non-flush
Switching frequency
1,000 Hz
Connection type
Cable, 3-wire, 2 m
Switching output
NPN
Output function
NC
Electrical wiring
DC 3-wire
Enclosure rating
IP67 1)
IP68 1)
IP69K 2)
Special features
Resistant against coolant lubricants, Temperature resistance
Special applications
Zones with coolants and lubricants, Mobile machines, Difficult application conditions
Items supplied
Mounting nut, brass, nickel-plated (2x)
1) According to EN 60529.
2) According to ISO 20653:2013-03.
Technical drawings
Installation note Non-flush installation
Connection diagram Cd-003
Response diagram
Functional principle
Dimensional drawing IMG18, short variant, cable, non flush
