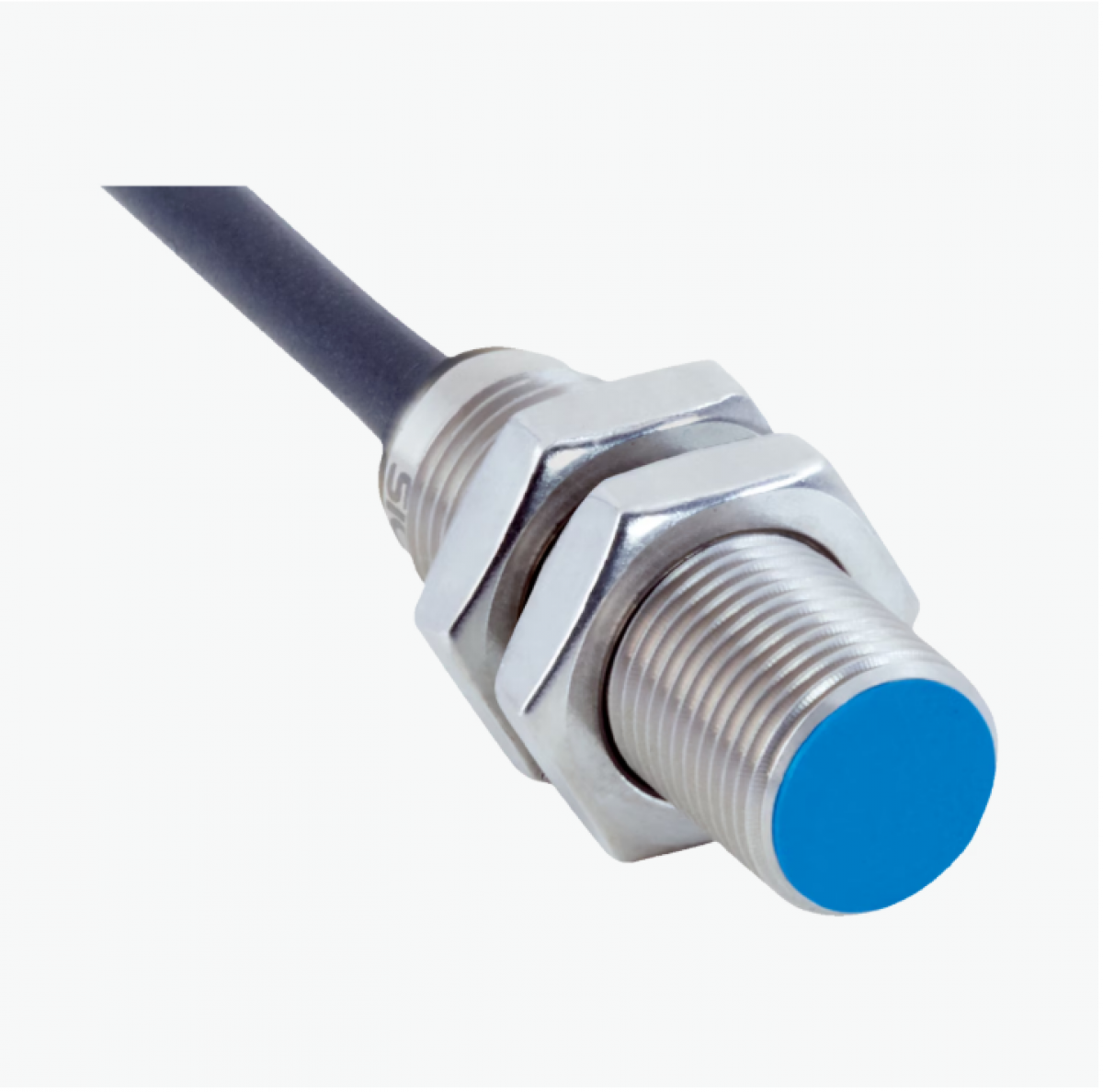

Cảm biến quang điện Sick IMG12-04BPSZU2K
Housing
Metric
Housing
Short-body
Thread size
M12 x 1
Diameter
Ø 12 mm
Sensing range Sn
4 mm
Safe sensing range Sa
3.24 mm
Installation type
Flush
Switching frequency
2,000 Hz
Connection type
Cable, 3-wire, 2 m
Switching output
PNP
Output function
NO
Electrical wiring
DC 3-wire
Enclosure rating
IP67 1)
IP68 1)
IP69K 2)
Special features
Resistant against coolant lubricants, Temperature resistance
Special applications
Zones with coolants and lubricants, Mobile machines, Difficult application conditions
Items supplied
Mounting nut, brass, nickel-plated (2x)
1) According to EN 60529.
2) According to ISO 20653:2013-03.
Technical drawings
Installation note Flush installation
Connection diagram Cd-001
Response diagram
Functional principle
Dimensional drawing IMG12, short variant, cable, flush
