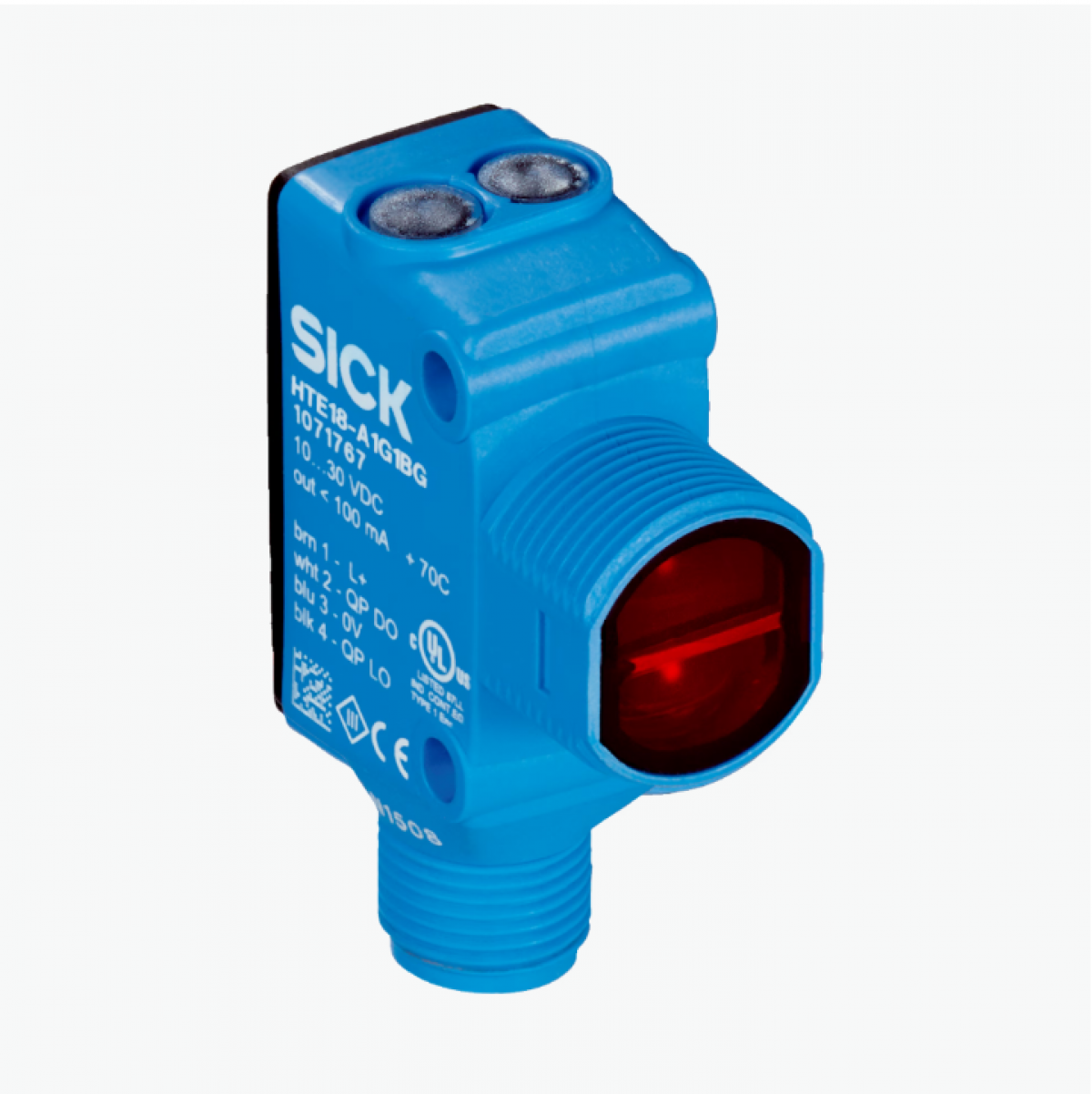

Cảm biến quang điện Sick HTF18-P3G2BB
Functional principle
Photoelectric proximity sensor
Functional principle detail
Foreground suppression
Dimensions (W x H x D)
16.2 mm x 45.5 mm x 31.8 mm
Housing design (light emission)
Hybrid
Thread diameter (housing)
M18
Mounting system type
M18, head/side (24.1 … 25.4 mm)
Housing color
Blue
Sensing range max.
5 mm … 300 mm 1)
Sensing range
5 mm … 150 mm 2)
Type of light
Visible red light
Light source
PinPoint LED 3)
Light spot size (distance)
7 mm (300 mm)
Wave length
631 nm
Adjustment
Potentiometer, right
Sensitivity
Potentiometer, left
None
Special features
Signal strength light bar
1) Object with 90% remission (based on standard white, DIN 5033).
2) Object with 6 % reflectance (referred to standard black, DIN 5033).
3) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Dimensional drawing
Adjustments
Pinouts, see table Technical data: Connection type/pinouts
Characteristic curve
Light spot size
Sensing range diagram
Functions
