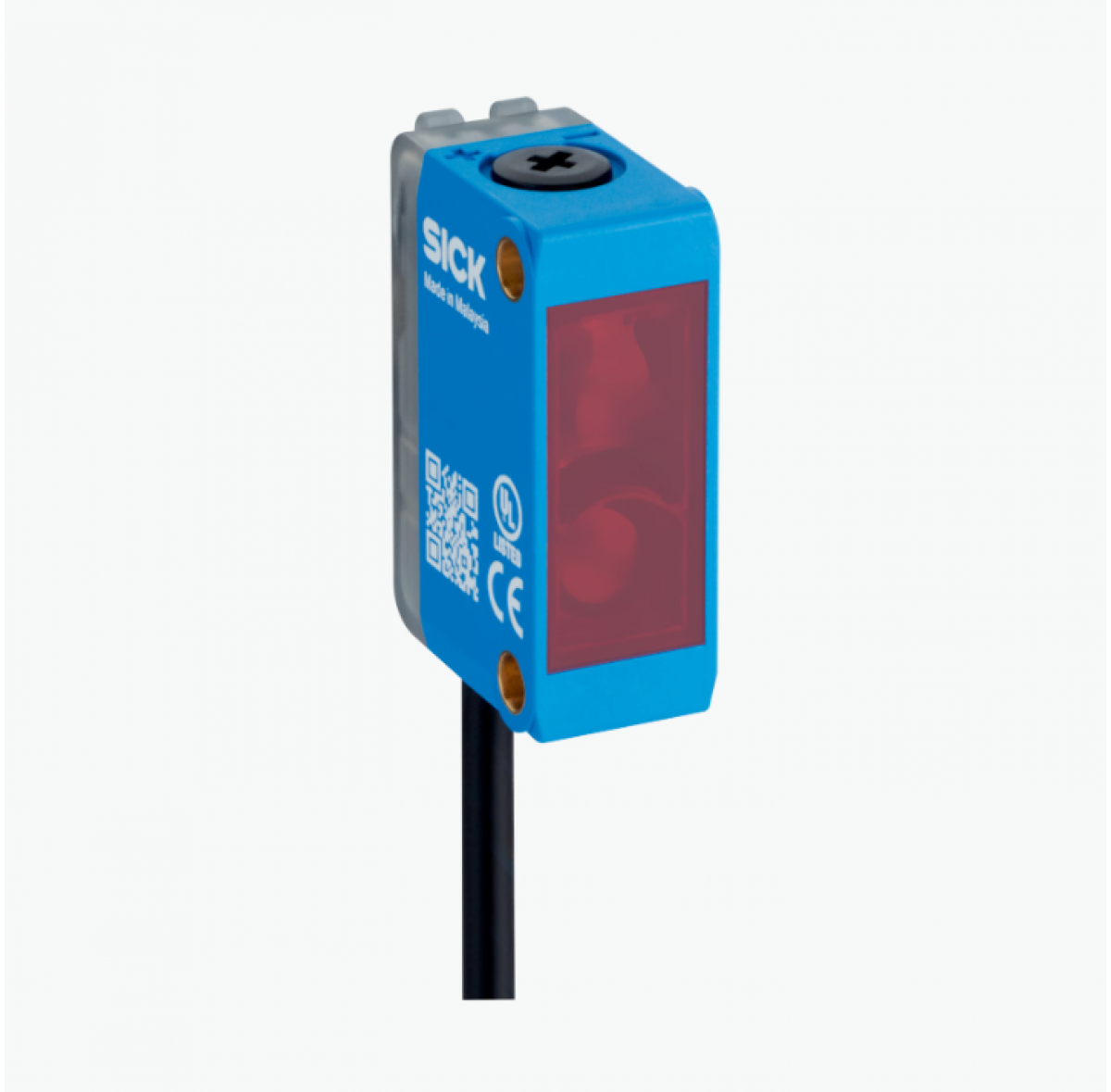

Cảm biến quang điện Sick GTE6SP-1GA1146EZZZ
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Sensing range
Sensing range min.
30 mm
Sensing range max.
900 mm
Recommended sensing range for the best performance
80 mm … 190 mm
Emitted beam
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
3.4 mm (150 mm)
Key LED figures
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
640 nm
Average service life
100,000 h at Ta = +25 °C
Smallest detectable object (MDO) typ.
Object with 90% remission factor (complies with standard white according to DIN 5033)
Adjustment
Potentiometer
For setting the sensing range, 5 rotations
Operating mode switch
For inverting the switching function (light/dark switching)
Indication
LED green
Operating indicator
Static on: power on
LED yellow
Status of received light beam
Static on: object present
Static off: object not present
Technical drawings
Dimensional drawing
display and adjustment elements
Connection type Cable, 3-wire
Connection diagram Cd-043
Truth table PNP – light switching Q
Truth table PNP – dark switching Ǭ
Characteristic curve
Light spot size
Sensing range diagram
