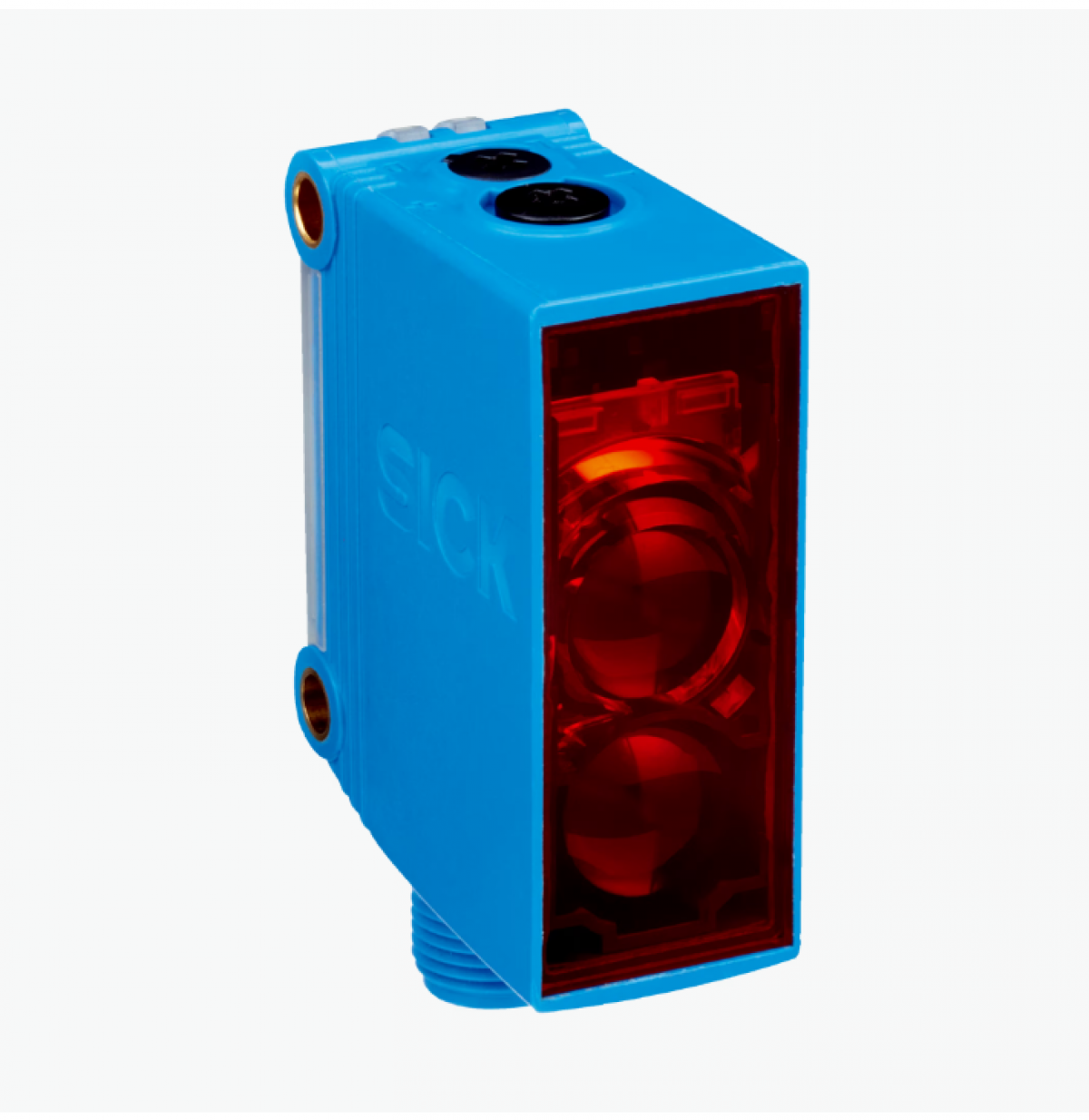

Cảm biến quang điện Sick GTE10-P4211
Functional principle
Photoelectric proximity sensor
Functional principle detail
Energetic
Dimensions (W x H x D)
20 mm x 50 mm x 39 mm
Housing design (light emission)
Rectangular
Sensing range max.
20 mm … 1,300 mm 1)
Sensing range
40 mm … 950 mm 1)
Type of light
Visible red light
Light source
PinPoint LED 2)
Light spot size (distance)
Ø 28 mm (1,400 mm)
Wave length
625 nm
Adjustment
Potentiometer, 270°
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Adjustments
Connection diagram Cd-066
Operating reserve
Light spot size
scanning range
Dimensional drawing GTE10, GL10, GL10G, DC, connector
