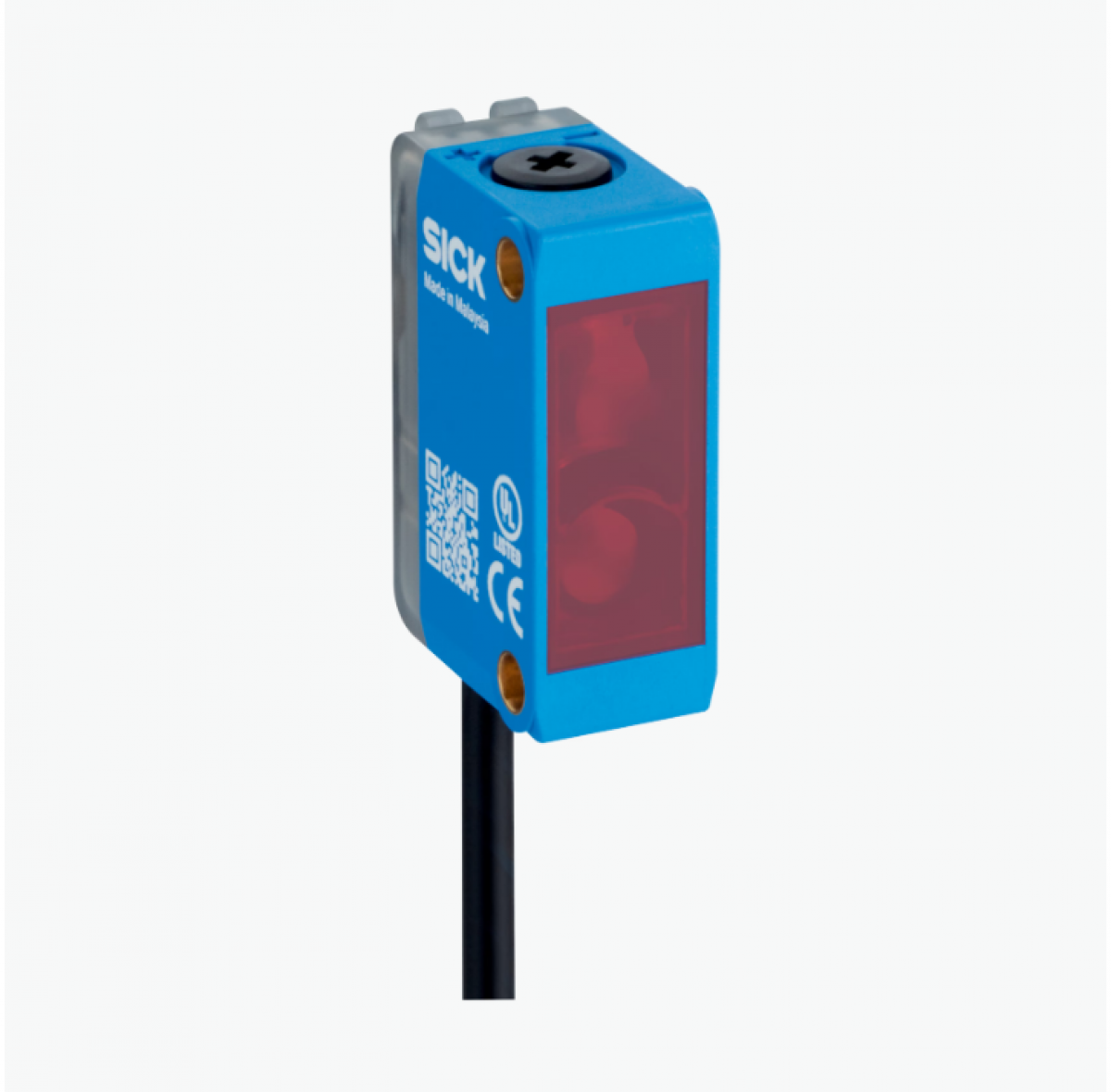

Cảm biến quang điện Sick GTB6SP-31A1116EZZZ
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Sensing range
Sensing range min.
5 mm
Sensing range max.
400 mm
Adjustable switching threshold for background suppression
35 mm … 400 mm
Minimum distance between set sensing range and background (black 6% / white 90%)
5 mm, at a distance of 120 mm
Recommended sensing range for the best performance
35 mm … 140 mm
Emitted beam
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
Ø 5.6 mm (150 mm)
Key LED figures
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
640 nm
Average service life
100,000 h at Ta = +25 °C
Smallest detectable object (MDO) typ.
Object with 90% remission factor (complies with standard white according to DIN 5033)
Adjustment
Potentiometer
For setting the sensing range, 5 rotations
Operating mode switch
For inverting the switching function (light/dark switching)
Indication
LED green
Operating indicator
Static on: power on
LED yellow
Status of received light beam
Static on: object present
Static off: object not present
Technical drawings
Dimensional drawing
Dimensional drawing, connection
display and adjustment elements
Connection type Connector M8, 3-pin
Connection diagram Cd-045
Truth table PNP – light switching Q
Truth table PNP – dark switching Ǭ
Characteristic curve
Light spot size
