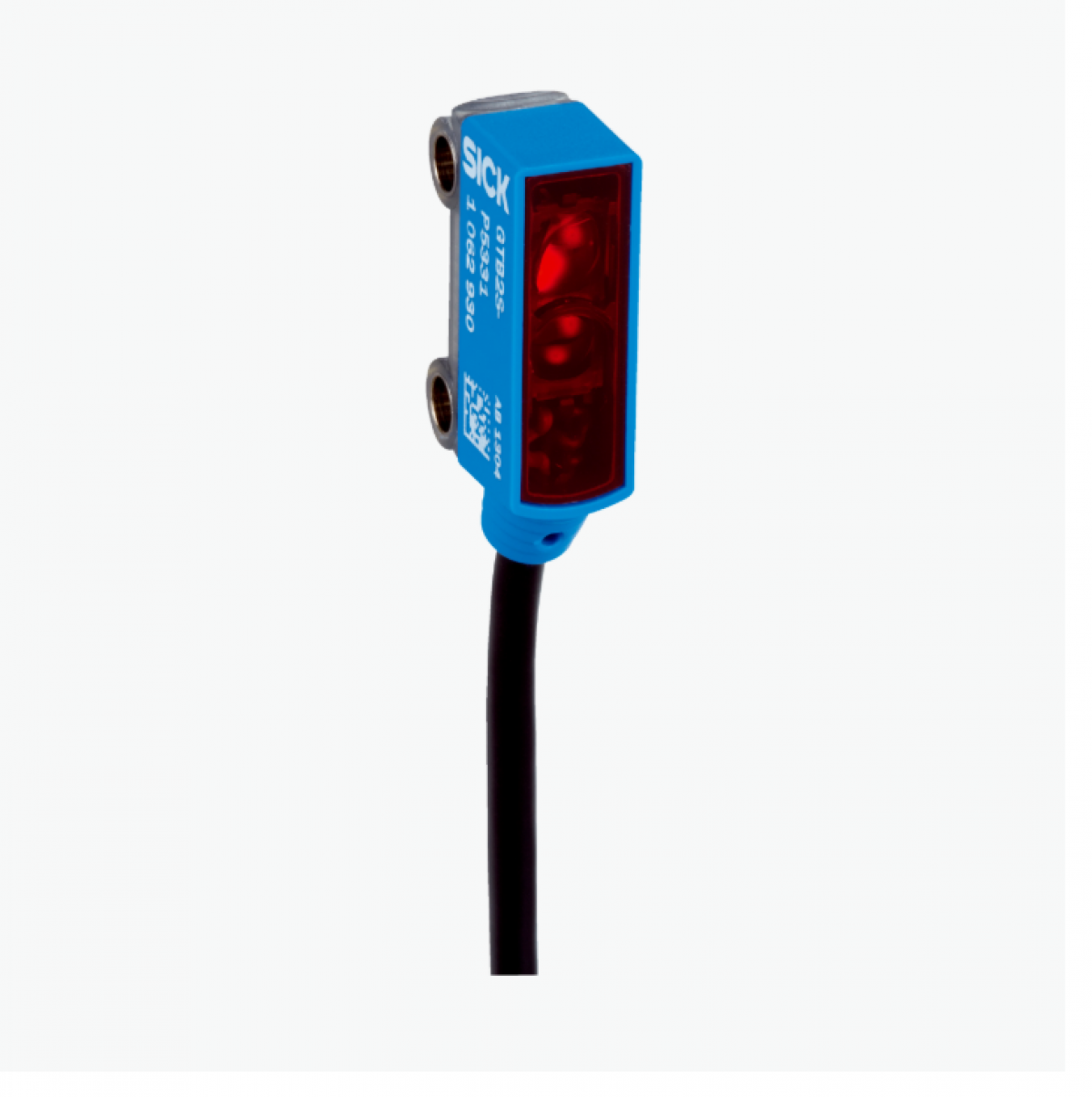

Cảm biến quang điện Sick GTB2S-N5331
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
7.7 mm x 21.8 mm x 13.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
1 mm … 36 mm 1)
Sensing range
5 mm … 30 mm 2)
Background suppression typ. from
38 mm
Type of light
Visible red light
Light source
PinPoint LED 3)
Light spot size (distance)
Ø 3 mm (15 mm)
Wave length
640 nm
Adjustment
None
Special applications
Detecting small objects
1) Object with 90% remission (based on standard white, DIN 5033).
2) Object with 6 % remission.
3) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection type
Connection diagram Cd-045
Light spot size GTB2S, 30 mm
Sensing range diagram GTB2S, 30 mm
Dimensional drawing GTB2S, 15 mm, 30 m
