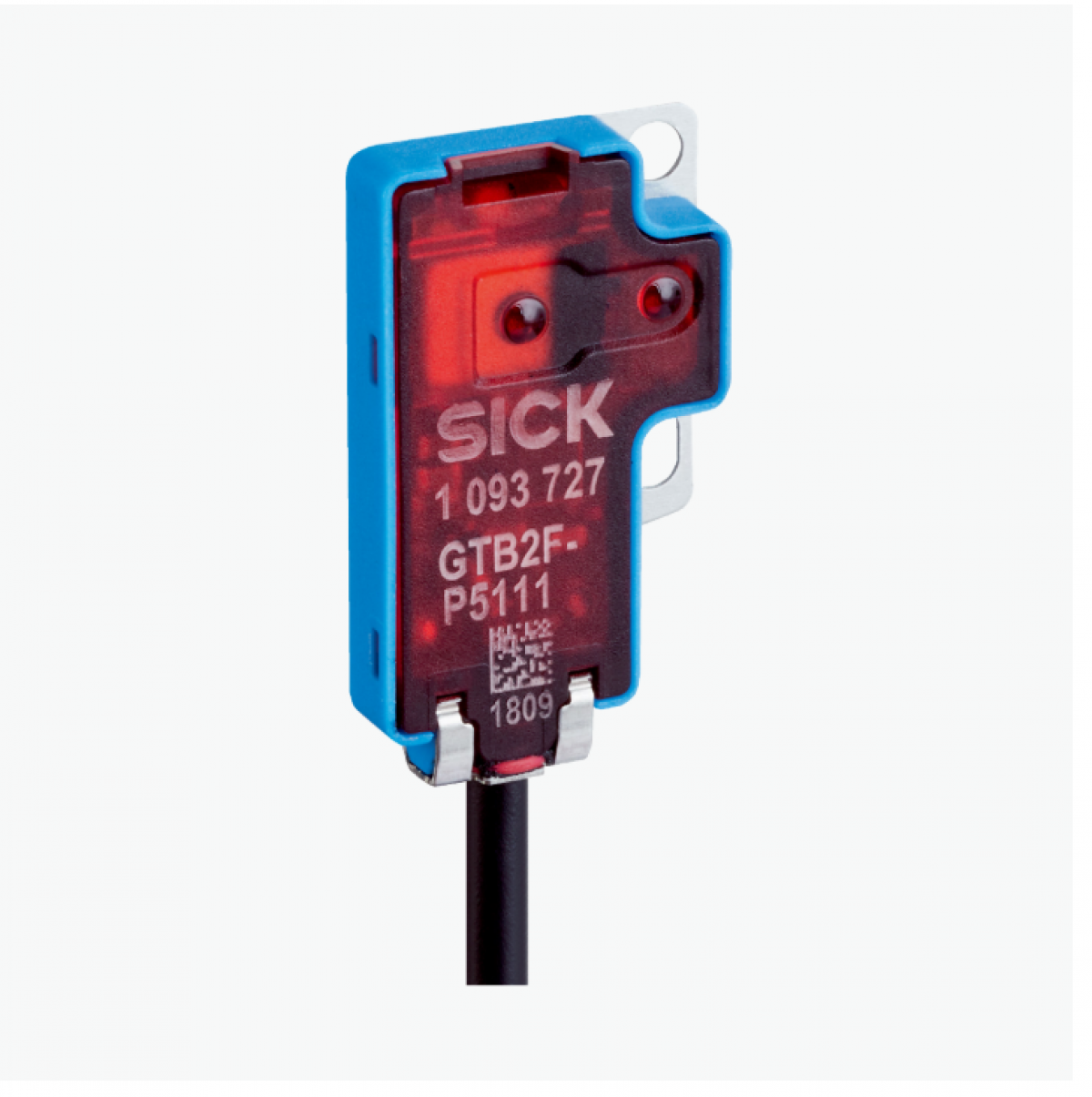

Cảm biến quang điện Sick GTB2F-N0111S04
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Dimensions (W x H x D)
14 mm x 24 mm x 3.5 mm
Housing design (light emission)
Rectangular
Minimum detectable object (MDO)
0.1 mm 1)
Sensing range max.
1 mm … 18 mm
Sensing range
1 mm … 15 mm 2)
Type of light
Visible red light
Light source
PinPoint LED 3)
Light spot size (distance)
Ø 2.5 mm (15 mm)
Wave length
660 nm
Adjustment
None
1) In 5 mm distance.
2) Object with 90% remission (based on standard white, DIN 5033).
3) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection diagram Cd-043
Light spot size GTB2 Flat, 15 mm
Sensing range diagram GTB2 Flat, 15 mm
Dimensional drawing
