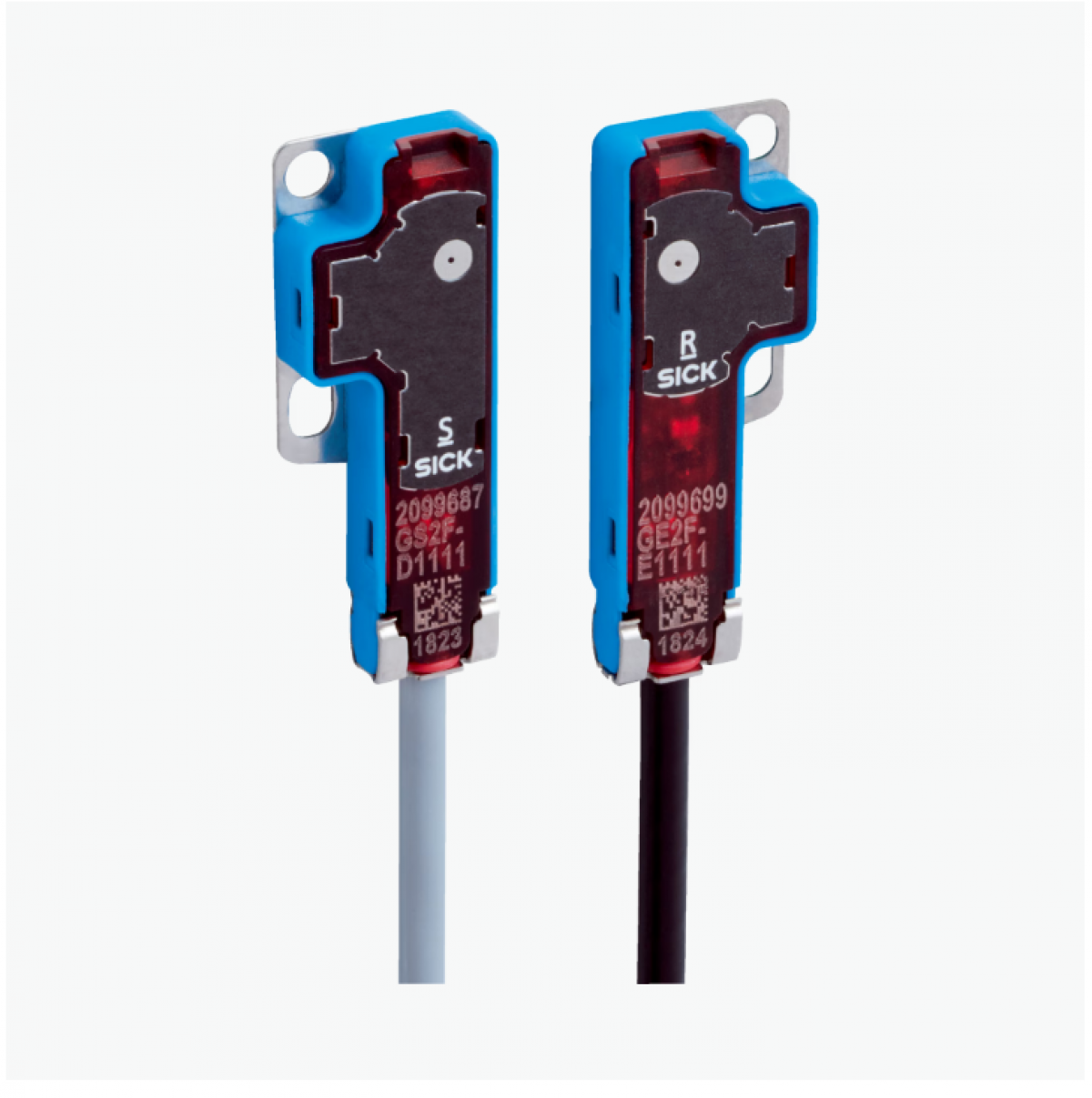

Cảm biến quang điện Sick GSE2F-E1151
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
10 mm x 27 mm x 3.5 mm
Housing design (light emission)
Rectangular
Minimum detectable object (MDO)
1 mm
Sensing range max.
0 mm … 700 mm
Sensing range
0 m … 500 mm
Type of light
Visible red light
Light source
PinPoint LED 1)
Light spot size (distance)
Ø 70 mm (500 mm)
Wave length
660 nm
Adjustment
None
1) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection diagram Cd-049
Characteristic curve
Light spot size GSE2 Flat, 500 mm
Sensing range diagram GSE2 Flat, GSE2 Flat Side, 500 mm
Dimensional drawing GSE2 Flat
