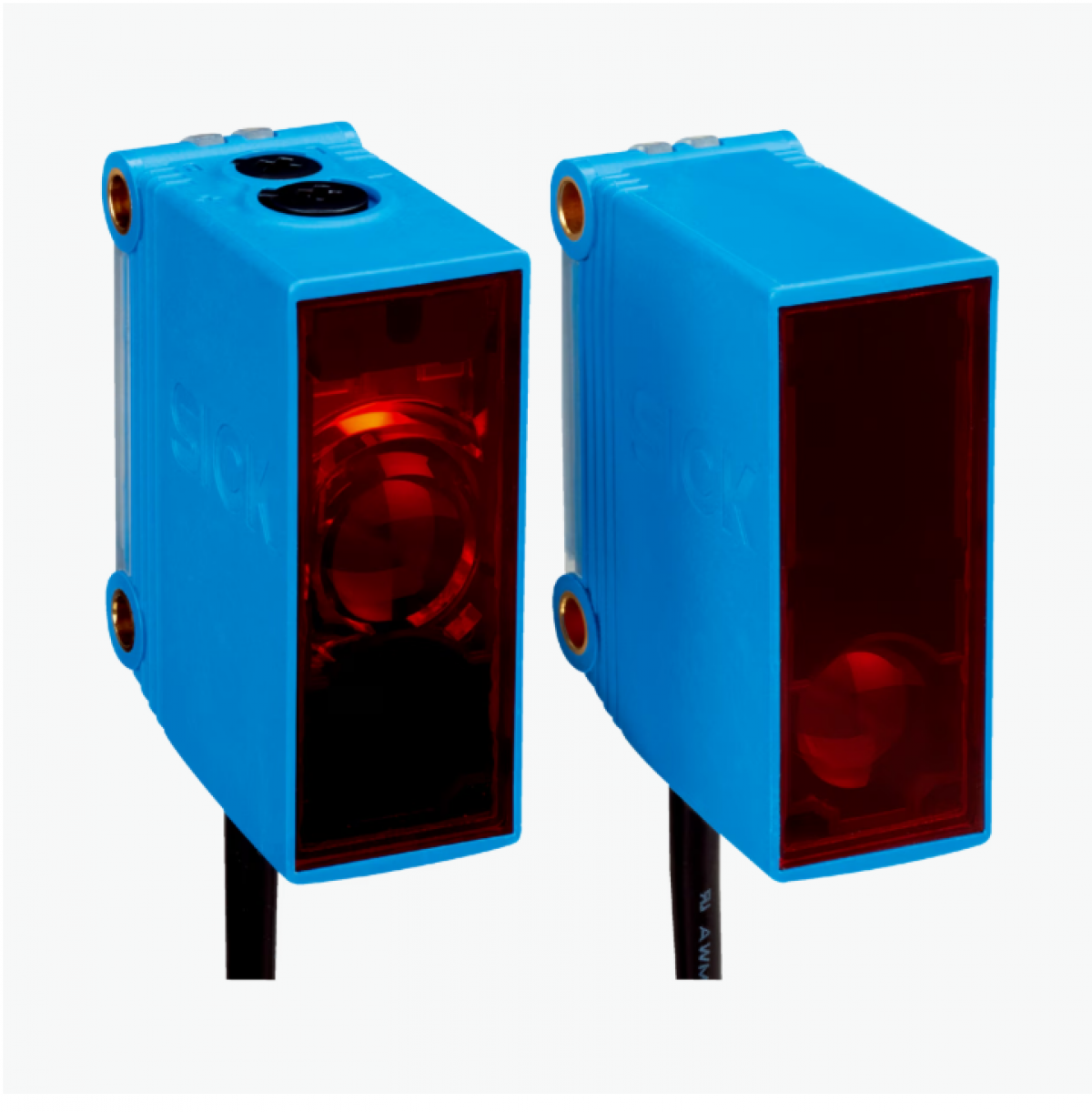

Cảm biến quang điện Sick GSE10-P1211
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
20 mm x 50 mm x 39 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 m … 40 m
Sensing range
0 m … 35 m
Type of light
Visible red light
Light source
PinPoint LED 1)
Light spot size (distance)
Ø 180 mm (15 m)
Wave length
625 nm
Adjustment
Potentiometer, 270°
1) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Adjustments
Connection diagram Cd-061
Characteristic curve GSE10, red light
Light spot size GSE10, red light
Sensing range diagram GSE10, red light
Dimensional drawing GSE10, DC, cable
