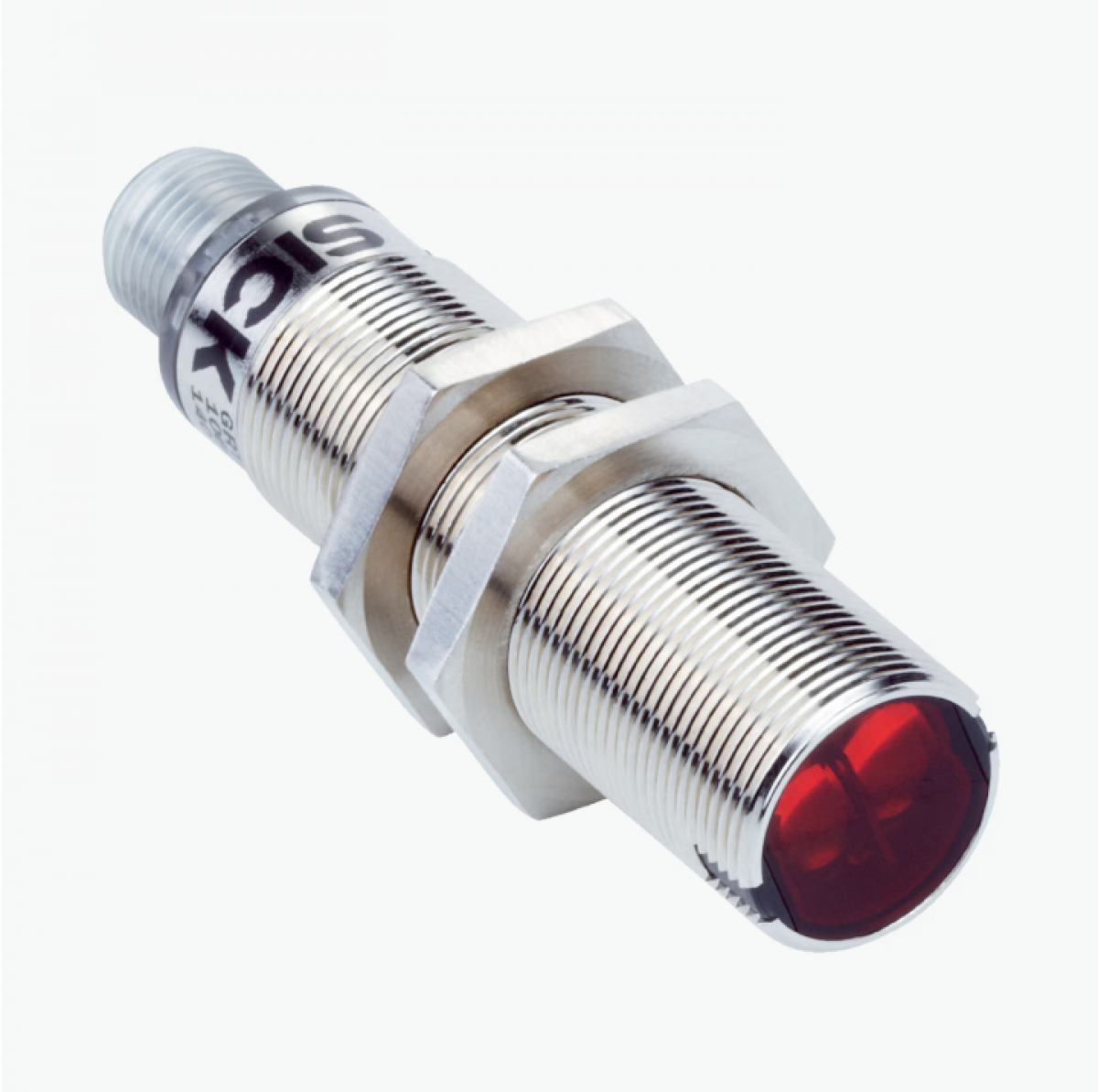

Cảm biến quang điện Sick GRSE18-P2421V
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
18 mm x 18 mm x 73.5 mm
Housing design (light emission)
Cylindrical
Housing length
73.5 mm
Thread length
49.3 mm
Thread diameter (housing)
M18 x 1
Optical axis
Axial
Sensing range max.
0 m … 15 m
Sensing range
0 m … 10 m
Type of light
Infrared light
Light source
LED 1)
Light spot size (distance)
Ø 420 mm (10 m)
Wave length
850 nm
Adjustment
None
Indication
LED green
Operating indicator
Static on: power on
LED yellow
Status of received light beam
Static on: object not present
Static off: object present
Special applications
Hygienic and washdown zones
1) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection diagram Cd-072
Characteristic curve GRSE18S
Light spot size GRSE18, infrared light
Sensing range diagram GRSE18S
Response range GRSE18S
Dimensional drawing GR18 Inox, connector, straight
