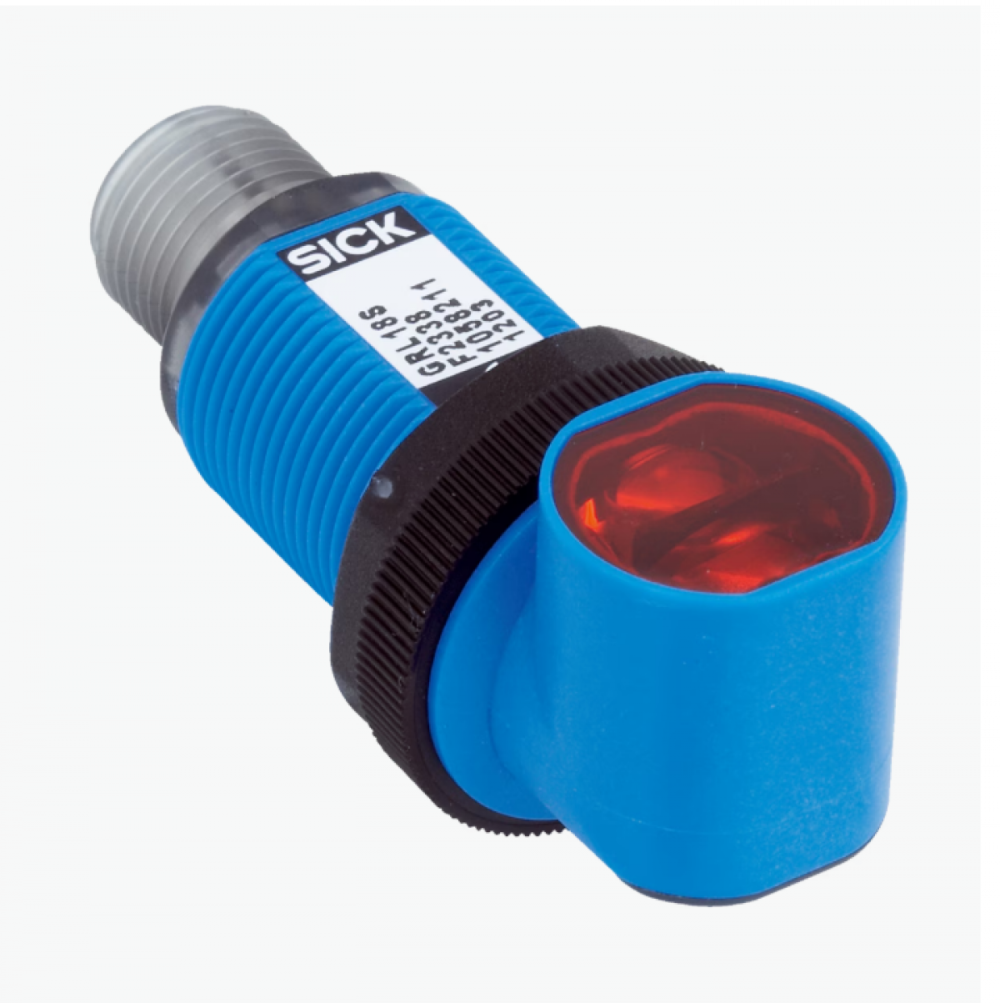

Cảm biến quang điện Sick GRL18S-P2338
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
With minimum distance to reflector (dual lens system)
Dimensions (W x H x D)
18 mm x 18 mm x 38.1 mm
Housing design (light emission)
Cylindrical
Thread diameter (housing)
M18 x 1
Optical axis
Radial
Sensing range max.
0.03 m … 7.2 m 1)
Sensing range
0.06 m … 6 m 1)
Type of light
Visible red light
Light source
PinPoint LED 2)
Light spot size (distance)
Ø 175 mm (7 m)
Wave length
650 nm
Adjustment
None
Indication
LED green
Operating indicator
Static on: power on
LED yellow
Status of received light beam
Static on: object not present
Static off: object present
1) Reflector PL80A.
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Connection type
Connection diagram Cd-045
Characteristic curve GRL18S
Light spot size GRL18S
Sensing range diagram GRL18S
Response range GRL18S
Dimensional drawing GR18S, plastic, connector, angled
