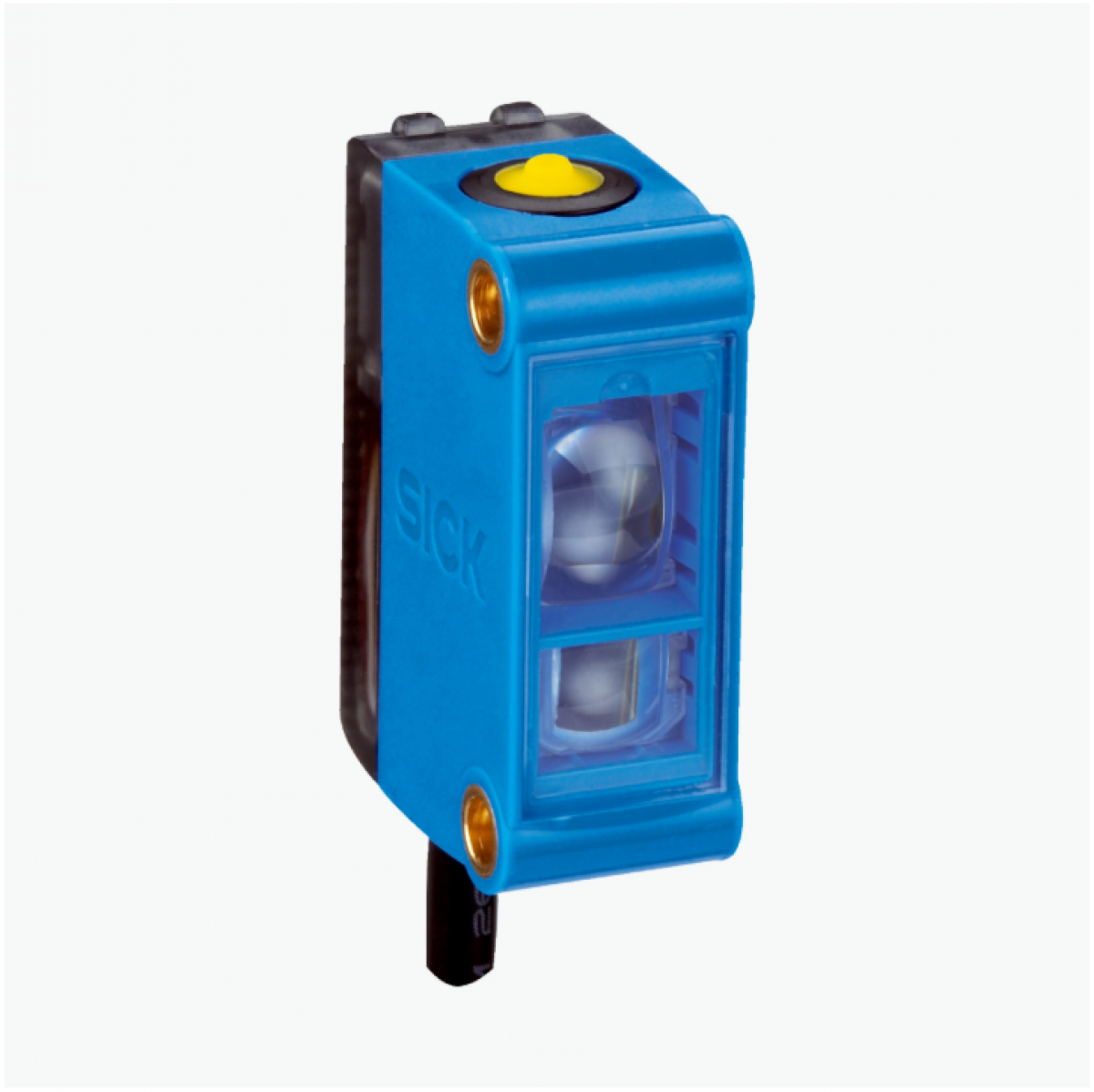

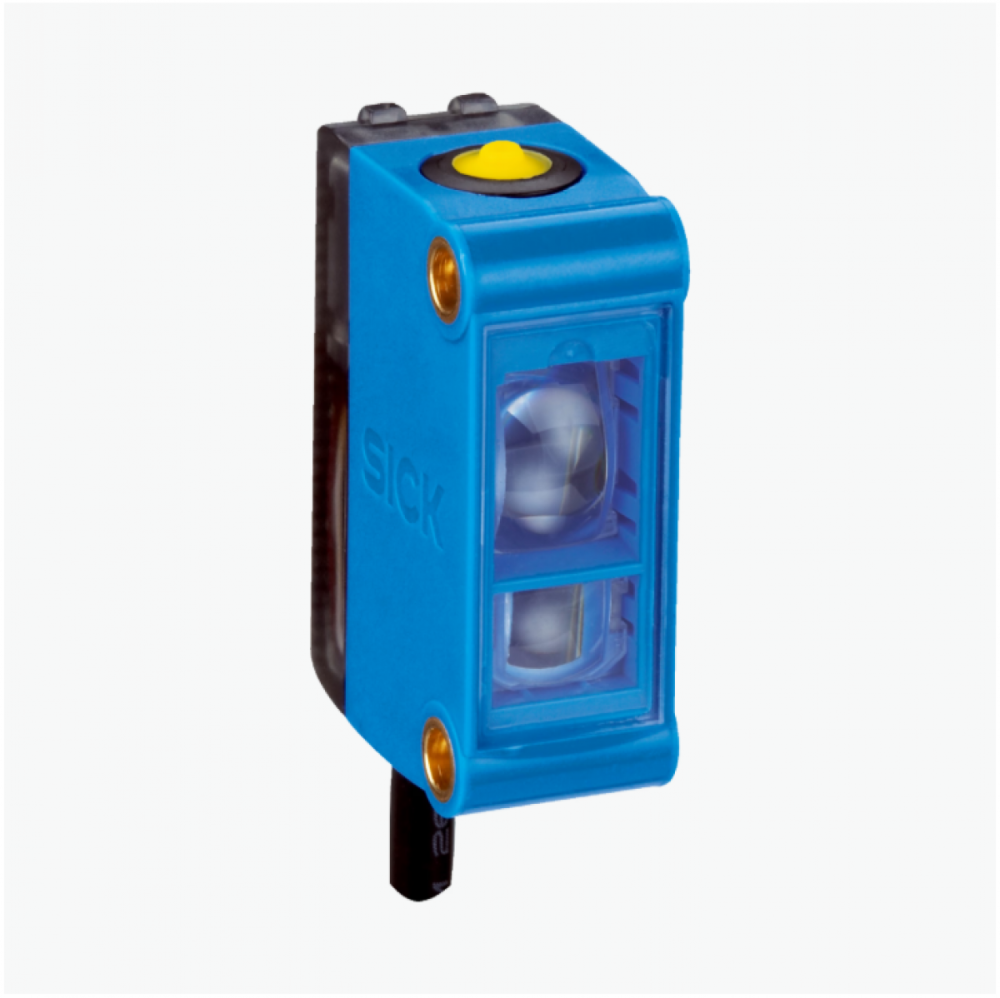

Cảm biến phát quang Sick LUTM-UP817A2P
Dimensions (W x H x D)
12 mm x 31.5 mm x 21 mm
Sensing distance
≤ 12.5 mm 1)
Housing design
Small
Working range
8 mm … 20 mm
Light source
LED, UV 2)
Wave length
370 nm
Light emission
Long side
Light spot size
2 mm x 2.5 mm 3)
Light spot direction
Vertical
Receiving range
450 nm … 750 nm
Adjustment
Cable, IO-Link
Teach-in mode
2-point teach-in static/dynamic
Output function
Light/dark switching 4)
1) From leading edge of lens.
2) Average service life: 100,000 h at TU = +25 °C.
3) At sensing distance.
4) L/D switching via teach-in.
Technical drawings
Dimensional drawing
display and adjustment elements
Connection diagram Cd-309
Setting the switching threshold (dynamic)
Setting the switching threshold (static)
Sensing distance
