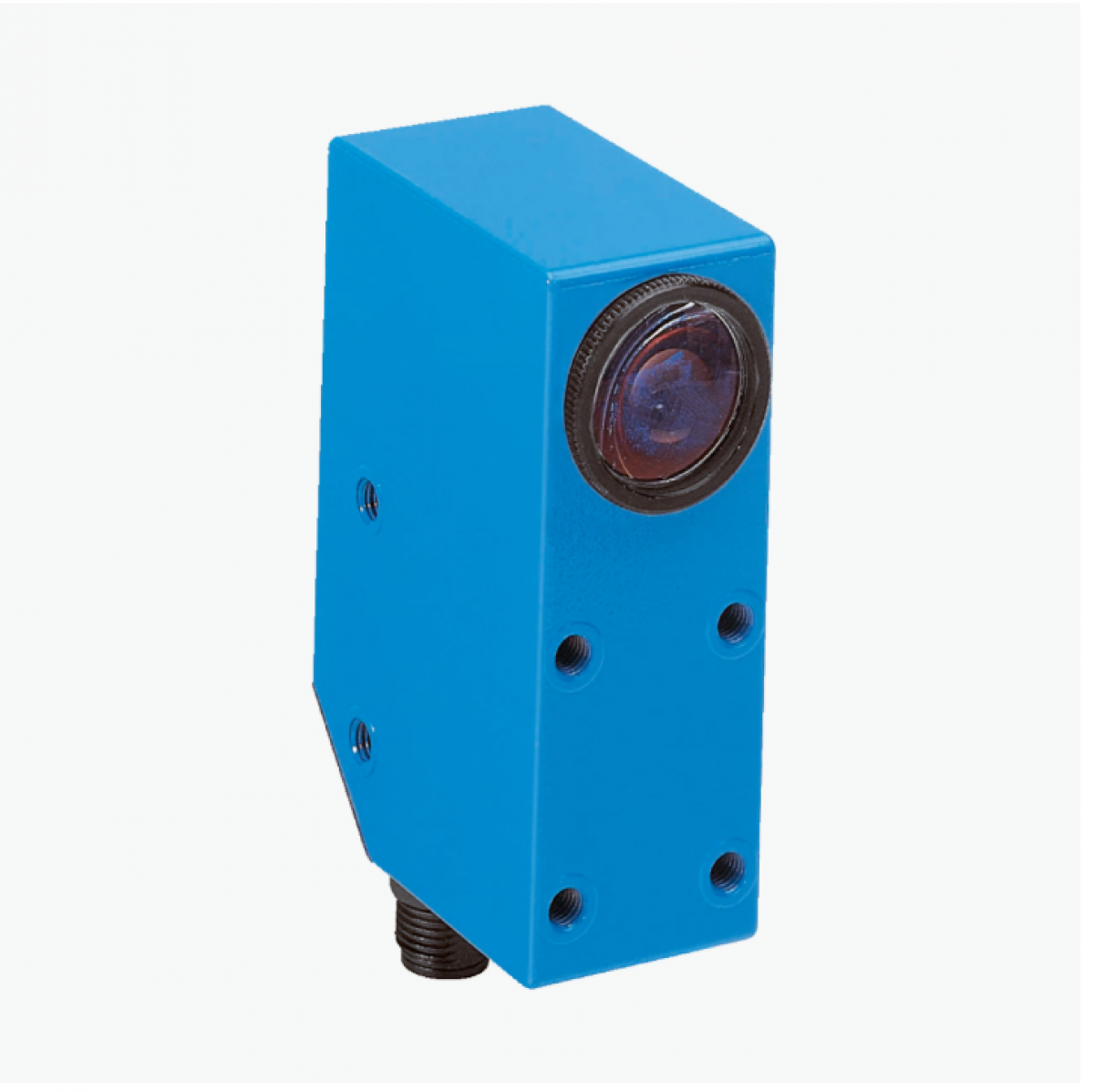

Cảm biến phát quang Sick LUT3-650
Dimensions (W x H x D)
30.4 mm x 53 mm x 80 mm
Sensing distance
≤ 50 mm 1)
Housing design
Large
Working range
30 mm … 60 mm
Light source
LED, UV 2)
Wave length
375 nm
Light emission
Long side
Light spot size
5 mm x 15 mm
Light spot direction
Vertical
Receiving filters
≤ 420 nm 3)
Receiving range
450 nm … 750 nm
Adjustment
Potentiometer
Output function
Light switching
1) From leading edge of lens.
2) Average service life: 100,000 h at TU = +25 °C.
3) Filter blocks shorter wavelengths to suppress background luminescence.
Technical drawings
Dimensional drawing
Adjustments
Connection diagram Cd-086
Concept of operation Potentiometer
Sensing distance
Light spot size
