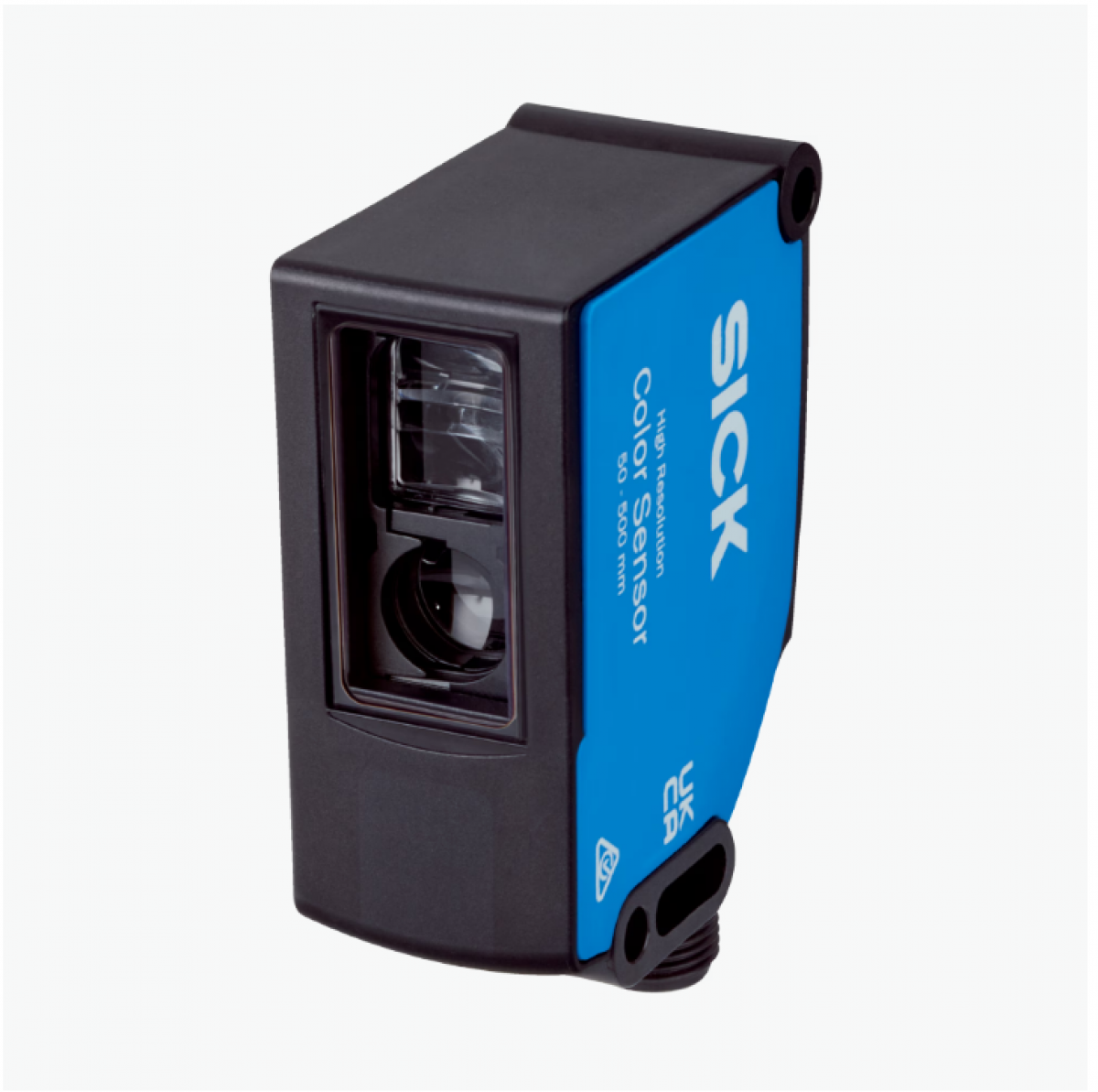

Cảm biến màu Sick CSS-WBGAD4115AA10Z
Dimensions (W x H x D)
26 mm x 62 mm x 47.5 mm
Sensing distance
50 mm … 500 mm
Housing design
S housing
Light source
LED, RGB 1)
LED risk group marking
2
Wave length
450 nm, 550 nm, 610 nm
Light emission
Long side of housing
Light spot size
Ø 8 mm … 32 mm 2)
Light spot direction
Round, large
Teach-in mode
Single value teach-in
Multi value teach-in
Color mode
C (Color)
C + I (Color + Illumination)
Output mode
2 colors in standard mode/best fit mode
3 colors in coded mode
Adjustment of the sensitivity
Continuous: 0 … 999
Available job banks
4
Output (channel)
2 × hardware switching outputs
24 x virtual switching outputs via IO-Link
Parameter presettings
None
1) Average service life: 100,000 h at TU = +25 °C.
2) Depends on the sensing distance.
Technical drawings
Dimensional drawing, sensor
Pinouts, see table Technical data: Connection type/pinouts
display and adjustment elements
Light spot size
