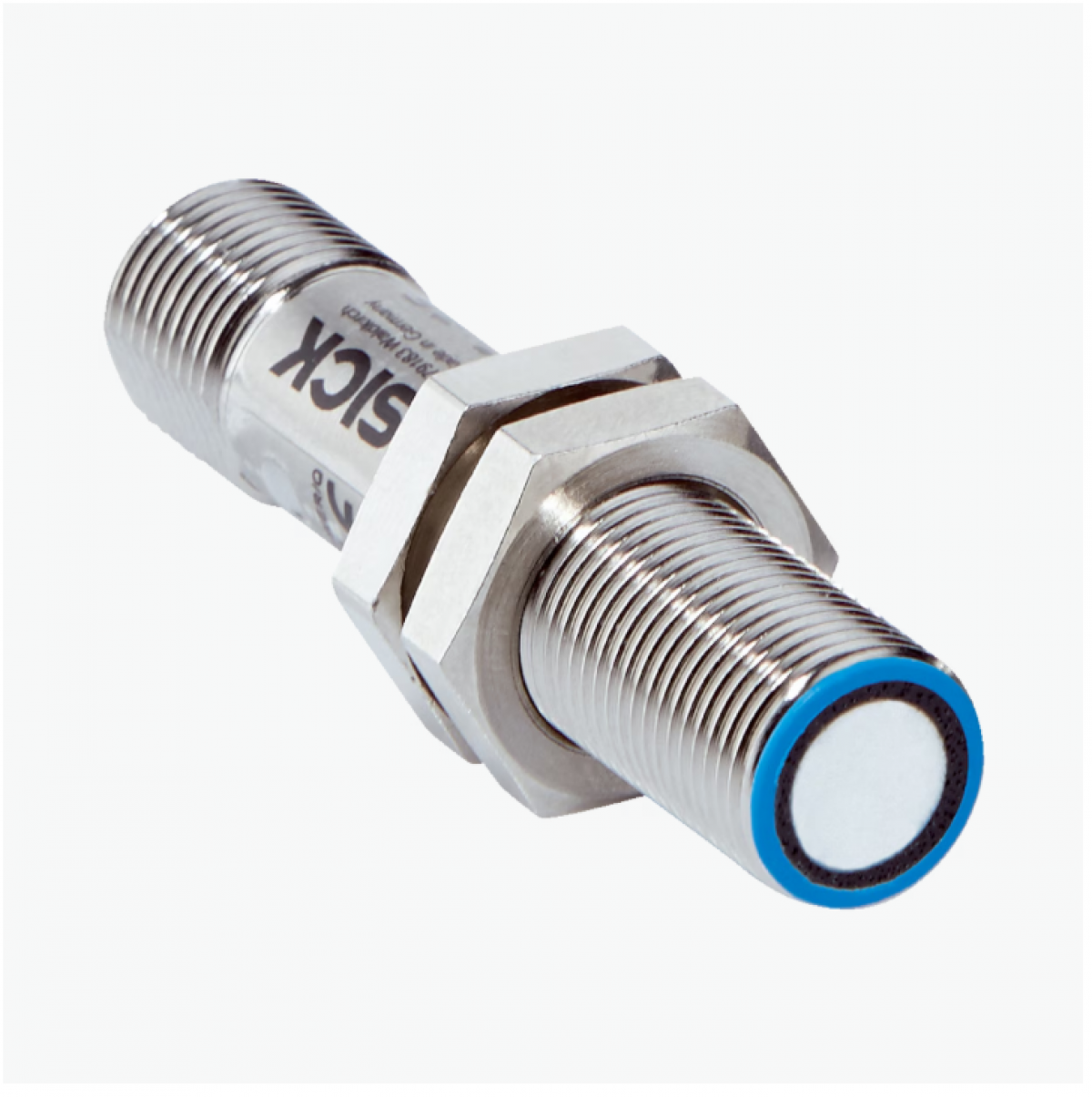

Cảm biến khoảng cách siêu âm Sick UM12-1172271
Operating range, limiting range
20 mm … 150 mm, 250 mm
Target
Natural objects
Resolution
≥ 0.069 mm
Repeatability
± 0.15 % 1)
Measurement accuracy
± 1 % 2)
Temperature compensation
✔
Response time
24 ms 3)
Output time
8 ms
Ultrasonic frequency (typical)
380 kHz
Additional function
Teach-in of analog output, Invertable analog output, reset to factory default 4)
Safety-related parameters
MTTFD
101 years
DCavg
0%
1) In relation to the current measured value, minimum value ≥ resolution.
2) Referring to current measurement value.
3) Subsequent smoothing of the analog output, depending on the application, may increase the response time by up to 200 %.
4) Functions may vary depending on sensor type.
Technical drawings
Dimensional drawing UM12-11×2261, UM12-11×2271
Connection type
Connection diagram UM12-11×2261, UM12-11×2271
Detection area UM1x-x17
