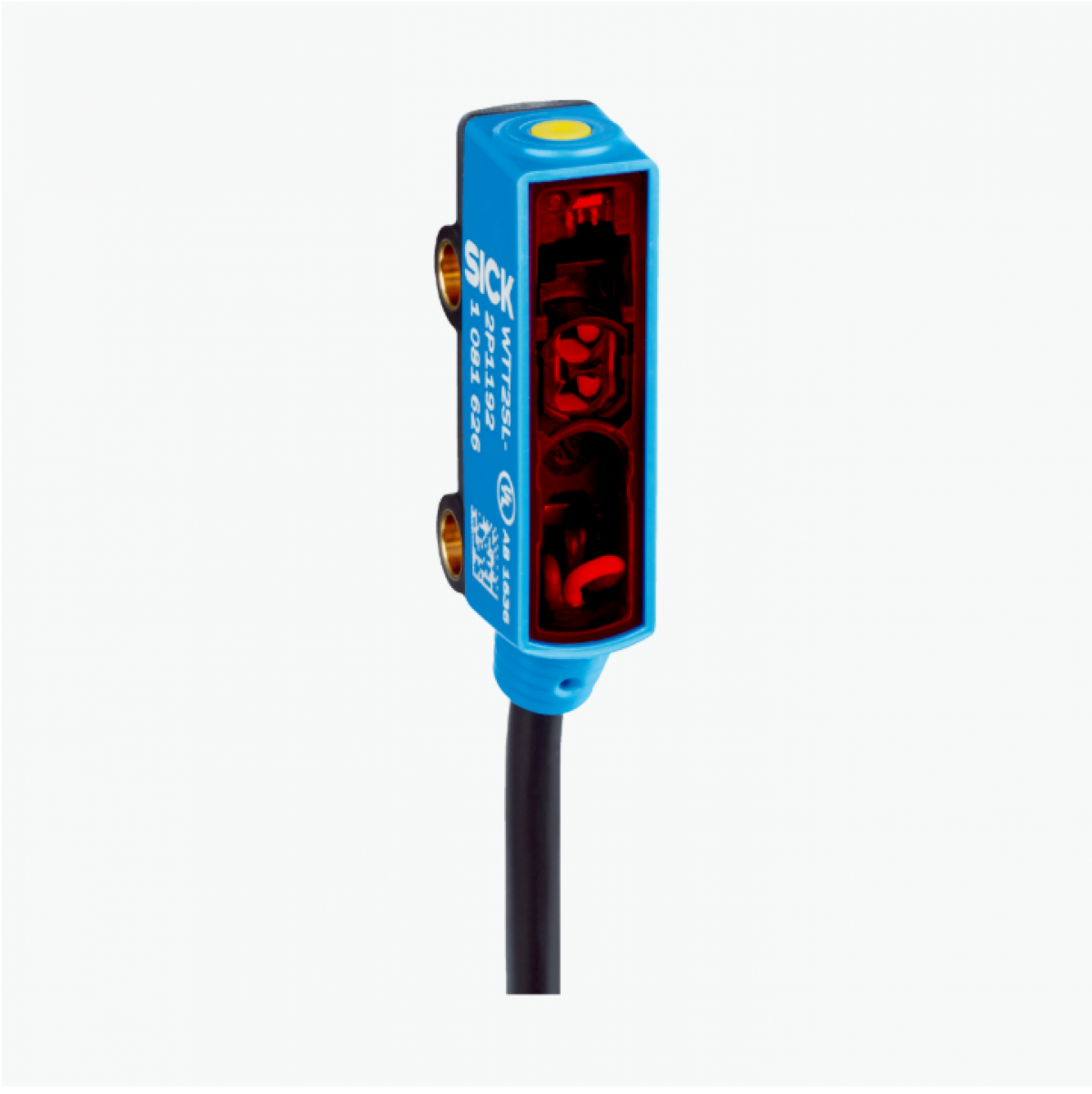

Cảm biến khoảng cách laser Sick WTT2SLC-2P3092B03
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression, Optical time-of-flight
Housing design (light emission)
Rectangular
Sensing range max.
50 mm … 800 mm 1)
Sensing range
50 mm … 800 mm 1)
Distance value
Repeatability
2 mm … 5 mm 2)
Accuracy
± 20 mm
Type of light
Infrared light
Light source
Laser 3)
Light spot size (distance)
Ø 10 mm (300 mm)
Wave length
940 nm
Laser class
1
Adjustment
Single teach-in button, IO-Link 4)
Special applications
Detecting small objects
Safety-related parameters
MTTFD
925 years
DCavg
0 %
1) Object with 6 … 90% remission (based on standard white, DIN 5033).
2) Equivalent to 1 σ.
3) Average service life: 50,000 h at TU = +25 °C.
4) Teach-Offset 15 mm.
Technical drawings
Dimensional drawing
Connection diagram Cd-434
Light spot size
Sensing distance
