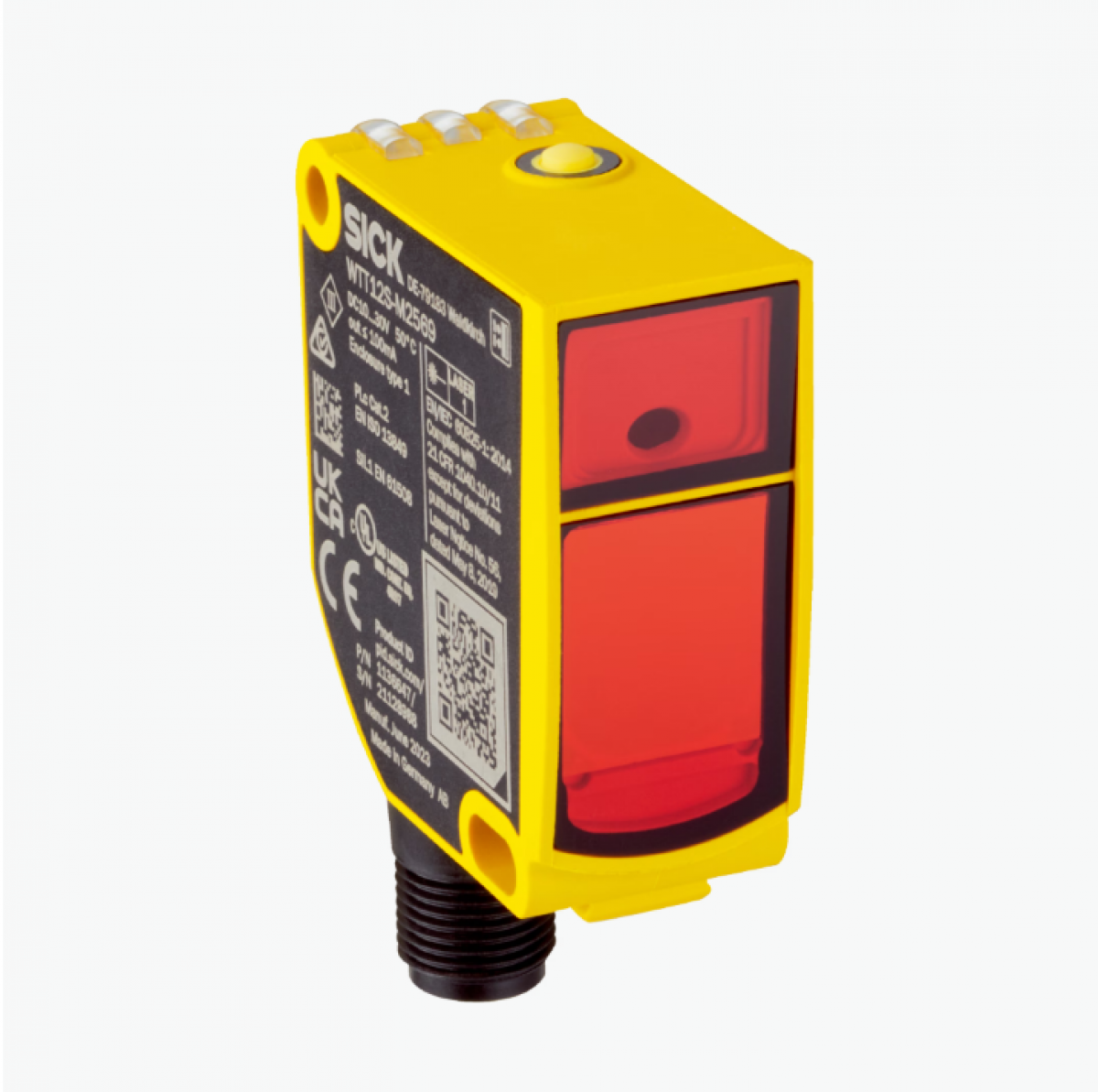

Cảm biến khoảng cách laser Sick WTT12S-C2569
Functional principle
Photoelectric proximity sensor
Functional principle detail
Absence of reference object or reference surface
Housing design (light emission)
Rectangular
Safety-related detection zone
150 mm … 2,000 mm, Target with 6% remission or higher. The laser beam hits the target surface at an angle of incidence of 90°, the light spot is covered fully by the target. Distance front of sensor to reference surface: 150 mm … 2,000 mm, distance reference surface to background, e.g., step/opening: > 85 mm 1)
Type of light
Visible red light
Light source
Laser 2)
Light spot size (distance)
Ø 15 mm (within the sensing range)
Maximum pulse power
< 250 mW
Wave length
658 nm
Pulse duration
0.004 µs
Laser class
1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
Adjustment
Single teach-in button (1 x)
Safety-related parameters
Safety integrity level
SIL 1 (IEC 61508)
Performance class SRS/SRSS
C (IEC TS 62998-1)
Performance level
PL c (ISO 13849-1)
Category
Category 2 (ISO 13849-1)
MTTFD
138 years (ISO 13849-1)
PFHD (mean probability of a dangerous failure per hour)
3,3 x 10-7
DCavg
60 %
TM (mission time)
20 years (ISO 13849-1, rate of use: 60 %)
Maximum demand rate
36 /h
Test rate (external test)
At least 100 times the average expected demand rate (ISO 13849-1)
1) Customer may vary incident angle and target remission but needs to ensure effective reserve is within corridor as stated (the lower incident angle, the farther the distance the lower the reserve).
2) Average service life: 100,000 h at TU = +25 °C.
Technical drawings
Dimensional drawing
display and adjustment elements
Connection diagram
Light spot size
Functional principle
