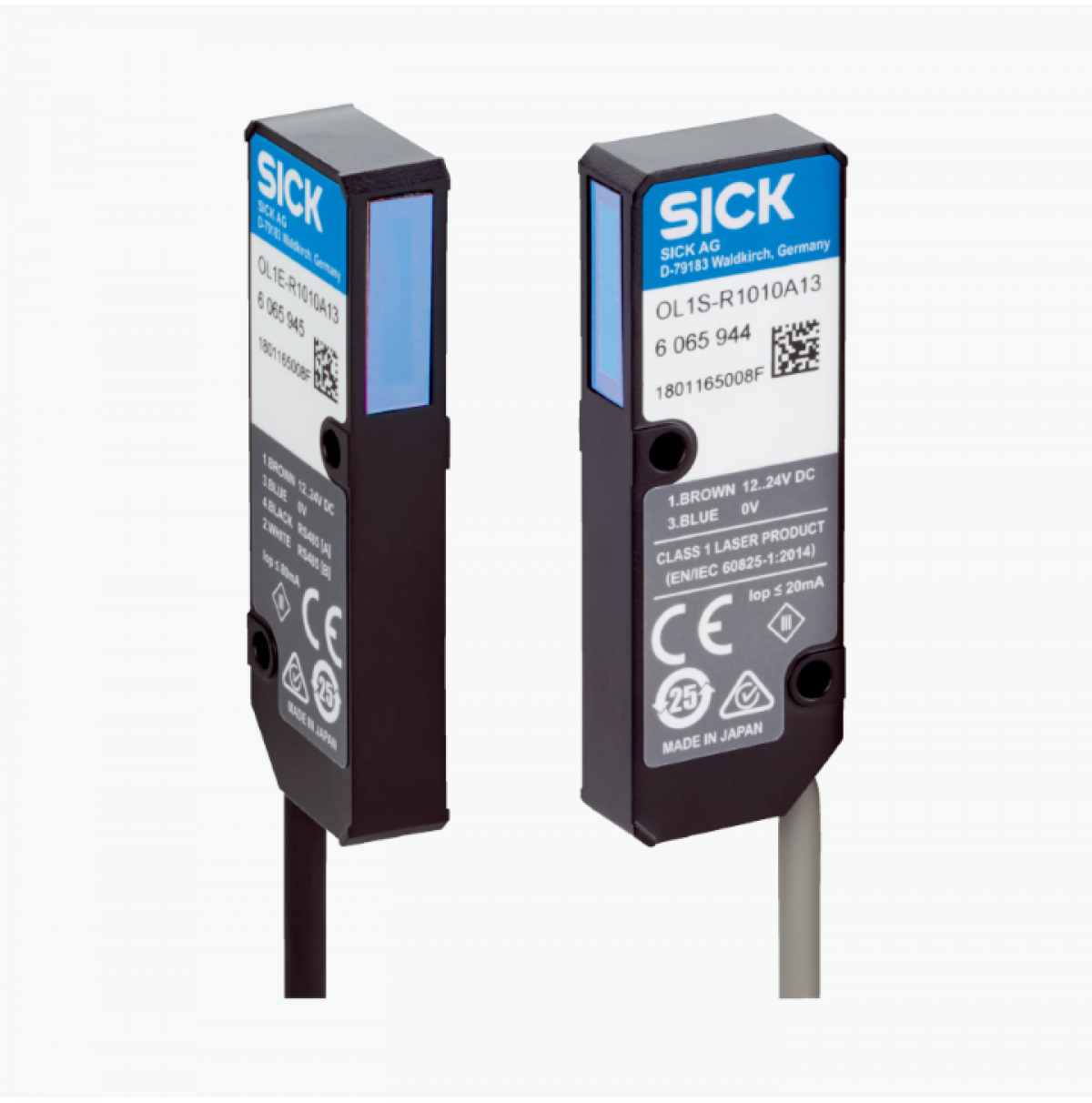

Cảm biến khoảng cách laser Sick OL1S/OL1E-R1010A13
Measuring range
10 mm
Installation distance
0 mm … 300 mm, Sender/receiver
Minimum detectable object
0.2 mm
Repeatability
10 µm
Linearity
± 40 µm
Response time
≥ 0.5 ms
Light source
Laser, red
visible red light
Type of light
Visible red light
Laser class
1 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance)
3 mm x 14 mm
Additional function
Measurement modes: Edge detection or diameter/width measurement
Adjustable average filter
Sensitivity adjustment for measuring transparent objects
Safety-related parameters
MTTFD
101 years
DCavg
0%
Technical drawings
Dimensional drawing OL1
Connection diagram OL1
