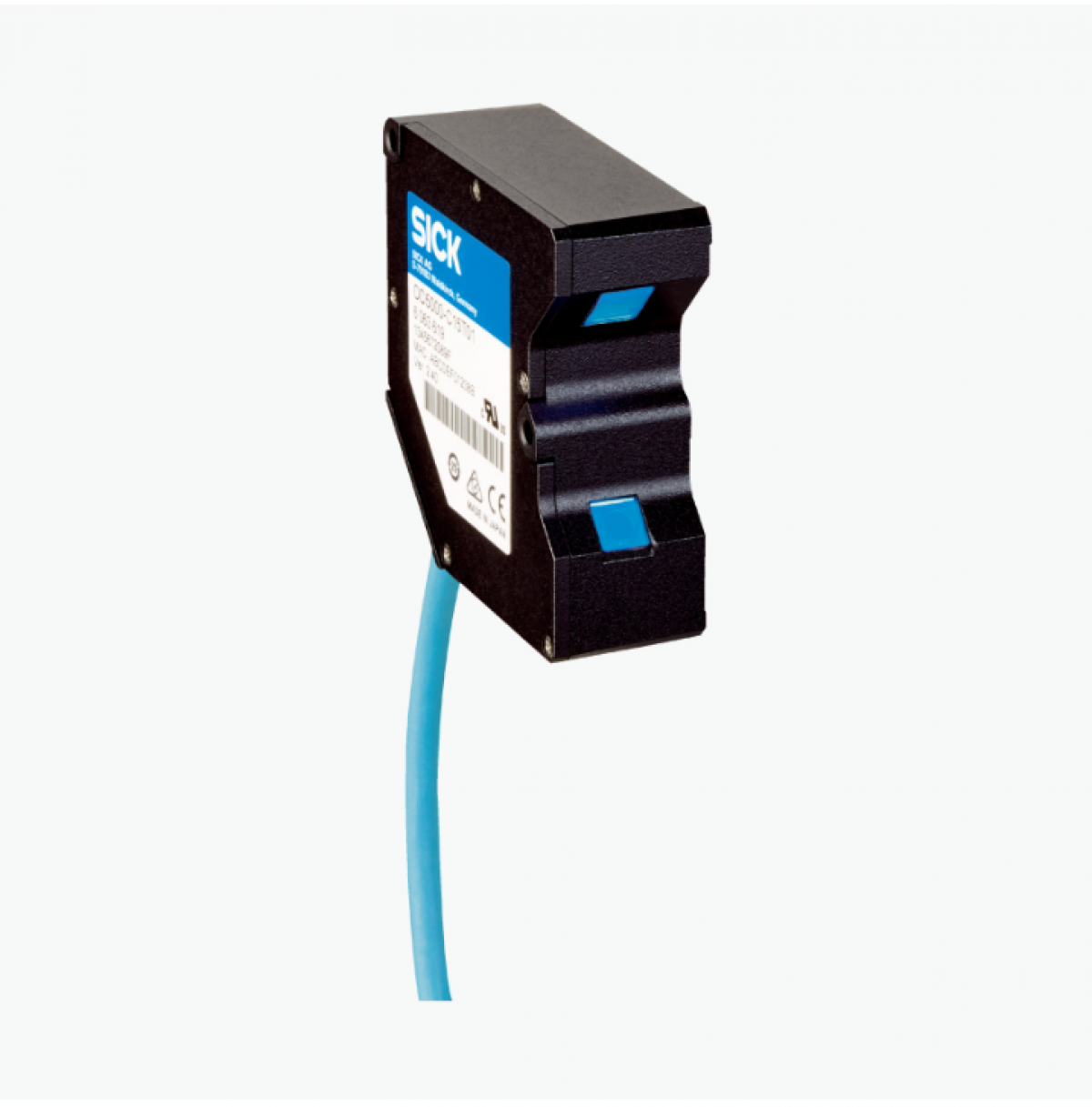

Measuring range
14 mm … 16 mm
Target
Natural objects
Repeatability
0.01 µm 1) 2)
Linearity
Specular ± 1 µm, Near side
Specular ± 1 µm, Far side
Diffuse not supported
Response time
≥ 12.5 µs 3) 4)
Output time
≥ 0.0125 ms
Light source
Laser, red
visible red light
Type of light
Visible red light
Laser class
1 (IEC 60825-1:2014, EN 60825-1:2014) 5)
Typ. light spot size (distance)
Ø 30 µm
Special task
Thickness measurement of transparent material
Thickness measurement of transparent material
0.06 mm … 0.18 mm
Safety-related parameters
MTTFD
60.9 years
DCavg
0%
1) Measurement on 60 % remission (ceramic, white).
2) Set average: 65536, median: 31, response time: 50 µs, constant application parameters.
3) At 0.0125 ms, measurement is only possible within a sub-range.
4) Dependent on the set average or sensitivity.
5) Visible, wavelength: 655 nm, max. power: 0.39 mW.
Technical drawings
Dimensional drawing OD5000-C15x01
Connection diagram
PIN assignment
PIN assignment
PIN assignment
PIN assignment Y-junctions
Light spot size
Linearity OD5000-C15T01 (reflective)
