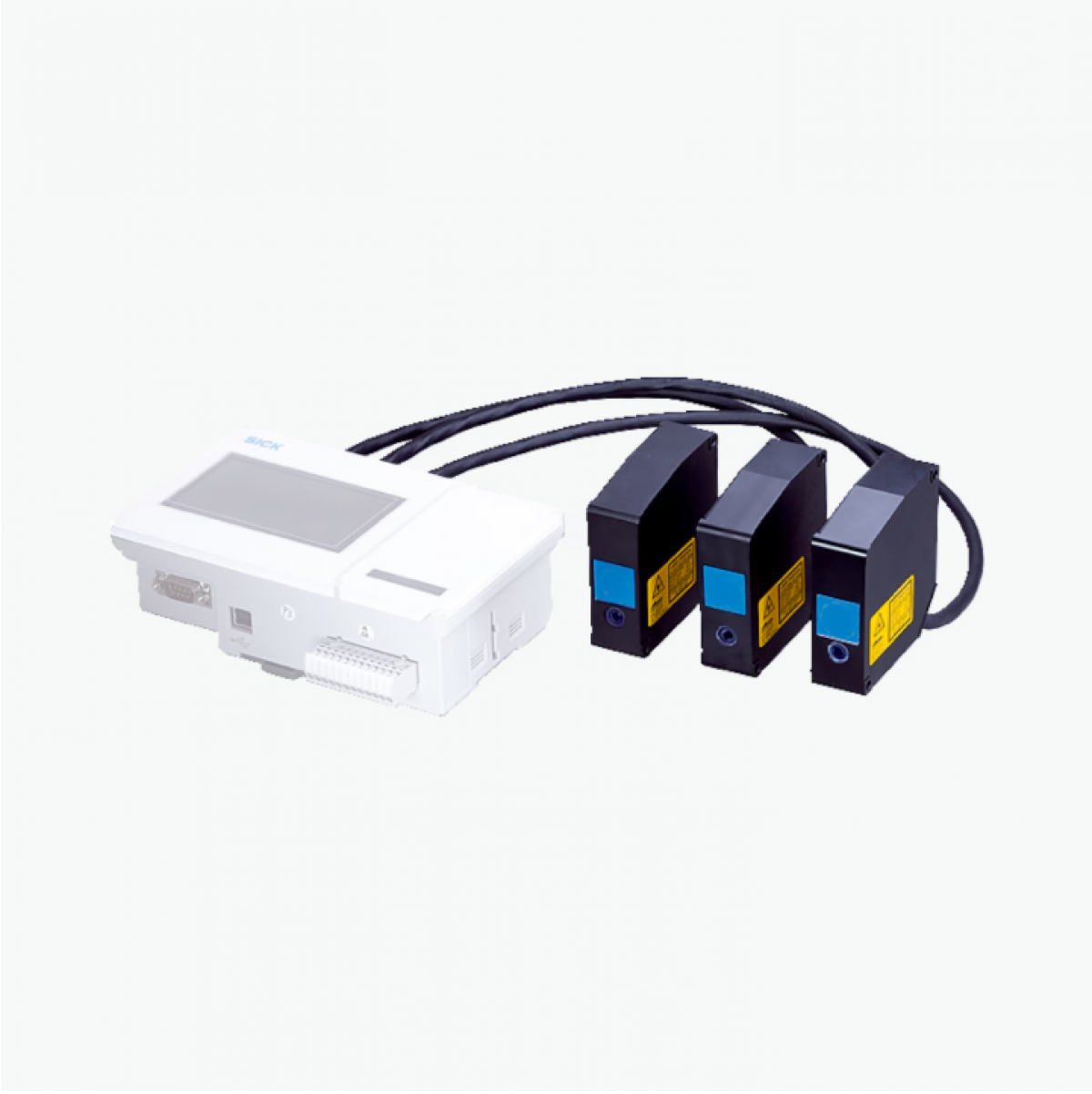

Cảm biến khoảng cách laser Sick OD5-30T05
System part
Sensor head
Measuring range
25 mm … 35 mm 1) 2)
Target
Natural objects
Repeatability
0.2 µm 3)
Linearity
Diffuse ± 8 µm 3)
Specular ± 4 µm 3)
Response time
≥ 0.1 ms 4) 5)
Output time
≥ 0.1 ms
Light source
Laser, red
visible red light
Type of light
Visible red light
Laser class
2 (IEC 60825-1:2014, EN 60825-1:2014) 6)
Typ. light spot size (distance)
30 µm x 100 µm (30 mm)
Special task
Thickness measurement of transparent material
Additional function
Mean-value setting 1 … 4,096x
Selectable measuring frequency (automatic / 0.1 ms … 3.2 ms)
Automatic sensitivity adjustment
Manual sensitivity adjustment
Mutual interference
Glass thickness measurement
Thickness measurement of transparent material
0.7 mm … 5 mm
General notes
Note on use
OD Precision sensor head can be used in combination with AOD5-P/N1 or stand-alone via RS-422
Safety-related parameters
MTTFD
101 years
DCavg
0%
1) 6 % … 90 % remission; at default settings.
2) If there are reflections, the measuring range is reduced to 23.6 mm … 28.6 mm.
3) Measurement at 90% remission (ceramic, white), or mirror for OD5-25x; averaging set to: 256 or 4096 for OD5-25x; constant ambient conditions.
4) Time needed for automatic sensitivity adjustment is calculated as: sampling period x 20. At default setting 100 µs (10kHz) this is <= 2ms.
5) Default setting for OD5-350×100 and OD5-500×200 = 0.8 ms, or 1.25 kHz, all others = 0.1 ms/10 kHz.
6) Wavelength: 658 nm, max. output: 1 mW.
Technical drawings
Dimensional drawing OD5-30xxx
Connection type Hirose 12-pin male connector for sensor head
Connection diagram
Adjustment possible
Light spot size OD5-30T05
Linearity OD5-30T05
