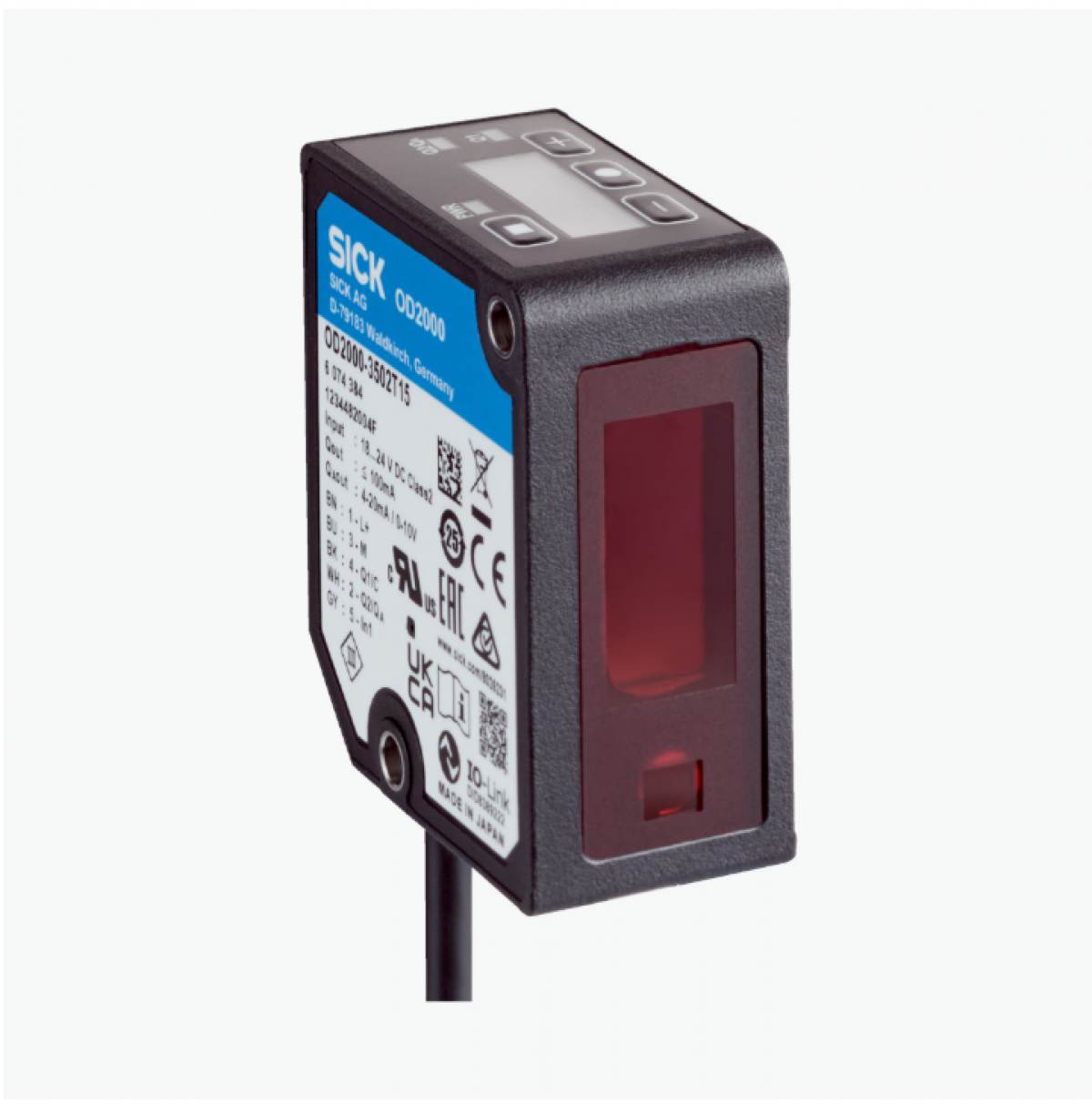

Cảm biến khoảng cách laser Sick OD2000-1301T15
Measuring range
60 mm … 200 mm 1)
Target
Natural objects
Repeatability
4 µm 2) 3) 4)
Linearity
± 140 µm 2) 4) 5)
Response time
≥ 0.533 ms 6)
Output time
≥ 0.1333 ms
Light source
Laser, red
visible red light
Type of light
Visible red light
Laser class
1 (IEC 60825-1:2014, EN 60825-1:2014) 7)
Typ. light spot size (distance)
Ø 300 µm (130 mm)
Additional function
Adjustable average value or media filter
Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB)
Teach-in of digital output
Invertable digital output
Teach-in of analog output
Invertable analog output
Switchable analog output (mA / V)
Multifunctional input: sender off/hold functions/deactivated
Switch-off display
Lock user interface
Display can be rotated by 180°
Alarm function
Edge height jump
Time functions (ON/OFF delay, 1 shot)
region of interest
Safety-related parameters
MTTFD
107 years
DCavg
0%
1) 6 % … 90 % remission; at default settings.
2) Measurement on 60 % remission (ceramic, white).
3) Average value setting: 512, median: 31, measuring frequency: 5 kHz, in the middle of the measuring range, for static measurement.
4) Observe min. warm-up time of 30 minutes.
5) At T = +25 °C, under constant general conditions.
6) Dependent on the set average or sensitivity.
7) Visible, wavelength: 655 nm, max. average power: 0.39 mW, max. pulse power: 0.39 mW, max. pulse duration: 5 ms.
Technical drawings
Dimensional drawing
Interference diagram
Connection diagram
Light spot size Typical light spot size OD2000-1301T15
Linearity
