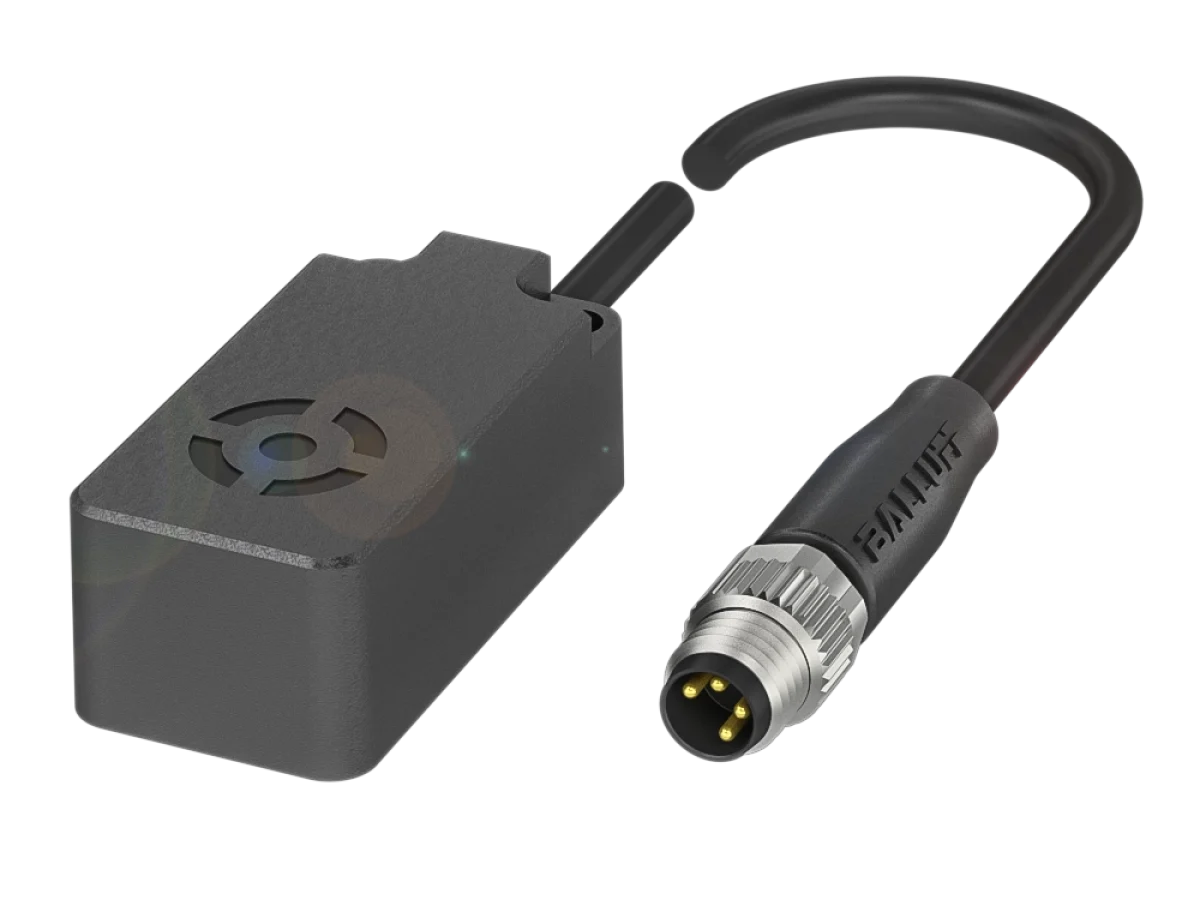

Cảm biến Balluff BAW0064 (BAW R14KC-UAD15F-BP00,15-GS75-506)

Cảm biến Balluff BAW0064 (BAW R14KC-UAD15F-BP00,15-GS75-506)
Dimension
20 x 15 x 42 mm
Style Housing
block style
Installation
non-flush
Range
2…15 mm
Analog output
Analog, voltage 0…10 V
Output characteristic
falling on approach
Limit frequency –3 dB
1000 Hz
Repeat accuracy per BWN
±200 µm
Non-linearity max.
±1000 µm
Housing material
PA 12
Material sensing surface
PA 12
Connection
Cable with connector, M8x1-Male, 4-pin, 150 mm, PU
Operating voltage Ub
15…30 VDC
Ambient temperature
-10…70 °C
IP rating
IP67
Approval/Conformity
CE
UKCA
cULus
WEEE
